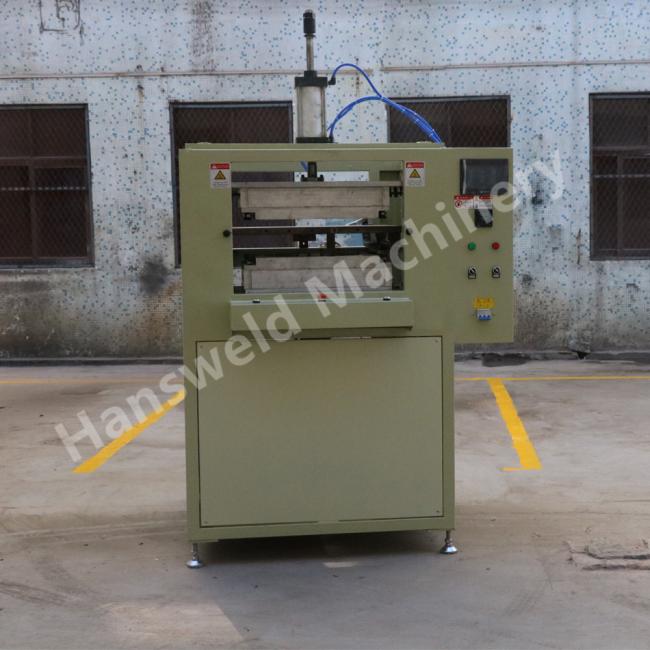

27.12Mhz Shoe Upper Machine Footwear Fussing Hot Oil Press Machine 380V 60Hz

Name: 27.12Mhz Shoe Upper Machine Footwear Fussing Hot Oil Press Machine 380V 60Hz
Brand: Dongguan Hansweld Co.,Ltd

Price Negotiable

Price: $4,000.00 - $10,000.00/Pieces

MOQ: 1 SET

Delivery Time: 3-7 work days

Brand: HANSWELD

Product Description

Application:

Suitable for leather embossing , shoes in soles welding forming , trimming fusing of PVC, EVA, PU,PETG, APET, GAG plastic

Product Parameter

Model	HSD-3050	Machine Working Principle:
Output Power	15000W	HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded. This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate. Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Voltage	380V 3P 50/60Hz
Input Power	20KVA
Frequency	27.12Mhz
Oscillation Tube	TOSHIBA 8T85RB
Anti-Spark System	NL-5557
Max Pressure	30Ton
Gap of Eletrode	150MM
Size of Mould Holder	400*500MM
Working Table Size	400*500MM
Machine Dimension	145022301660MM
Machine Net Weight	1300KG
