PVC TPU High Frequency Welding Machine 12KW 3P 380V 50Hz For Medical Bag
Price:
USD 5000-20000/SET
MOQ:
1 SET
Delivery Time:
20 working days
Brand:
Hansweld
Product Description
PVC TPU Pneumatic Blood Urine Medical Bag High Frequency Welding Machine
Features:
- l The two-way automatic sliding table is adopted to push the mold back and forth or continuously, and the NL-5557 high-frequency spark protection system can effectively prevent damage to the mold;
- l Equipped with high-frequency frequency stabilizer and high-frequency shielding device, which greatly reduces high-frequency interference.
- l Equipped with automatic overcurrent protection device, which can effectively protect the mold and electron tube.
- l There are air hydraulic pressure and pure hydraulic pressure to choose from.
TECHNICAL DATA:
| Model | HSD-8KWR-10T | HSD-10KWR-15T | HSD-12KWR-20T | HSD-15KWR-25T |
| Power | 8000W | 10000W | 12000W | 15000W |
| Power Supply | 380V 3P 50HZ | 380V 3P 50HZ | 380V 3P 50HZ | 380V 3P 50HZ |
| Frequency | 27.12MHz | 27.12MHz | 27.12MHz | 27.12MHz |
| Input power | 15KVA | 18KVA | 20KVA | 25KVA |
| Rectifier | SILICON DIODE | SILICON DIODE | SILICON DIODE | SILICON DIODE |
| Oscillation tube | 7T69RB | E3069 | E3130RB | 8T85RB |
| Max pressure | 10/15T | 10/15T | 15T/20T | 25T/30T |
| Gap of electrodes | 200MM | 200MM | 200MM | 200MM |
| Cylinder Stroke | 100MM | 100MM | 100MM | 100MM |
| Size of upper electrode | 300*400MM | 300*400MM | 450*500MM | 450*500MM |
| Max Welding surface each work cycle | 240c㎡ | 300c㎡ | 350c㎡ | 450c㎡ |
| Welding time | 0~10S Adjustable | 0~10S Adjustable | 0~10S Adjustable | 0~10S Adjustable |

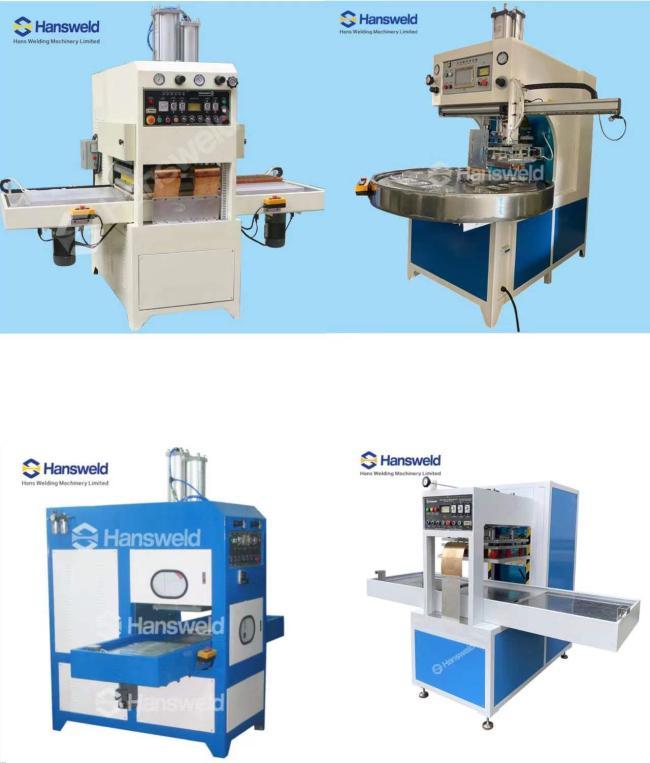

Product Display:

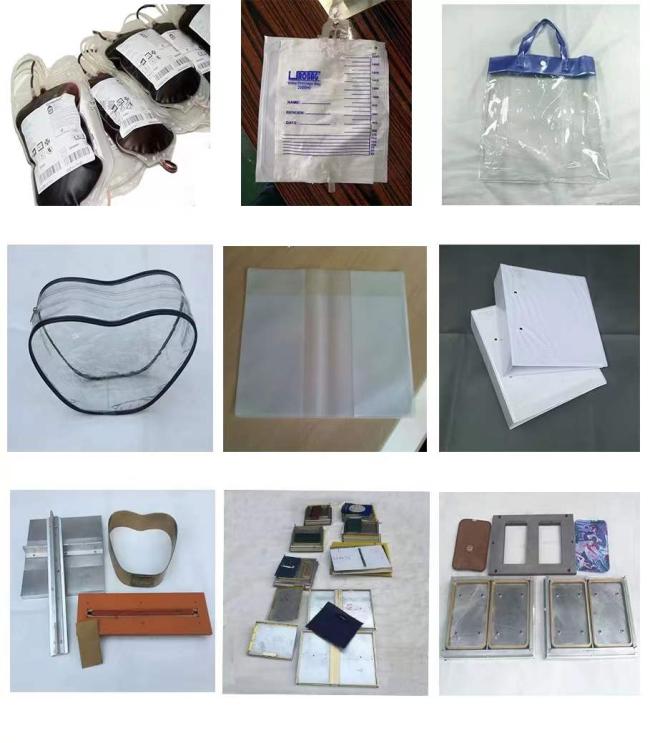

Application:
