Precision Welding Aluminum Pipe Bending Services 0.2mm

OEM custom aluminum iron pipe spare part CNC tube bending service

Main causes and improvement methods of bend quality degradation:

1. In pure bending, the outer side is thinned by tensile stress and the inner side is thickened by compressive stress. The change of thickness and internal stress reduce the quality of pipe fittings.

2. Therefore, it is beneficial to use the rotary bending method for the bending of thin-walled pipes.

3. The lubrication during bending will also affect the quality of bending. There are mainly oil-based and water-based elbow grease to increase lubrication. Due to the pollution of oil-based elbow grease, the subsequent cleaning process will increase the cost. Water based does not have this problem.

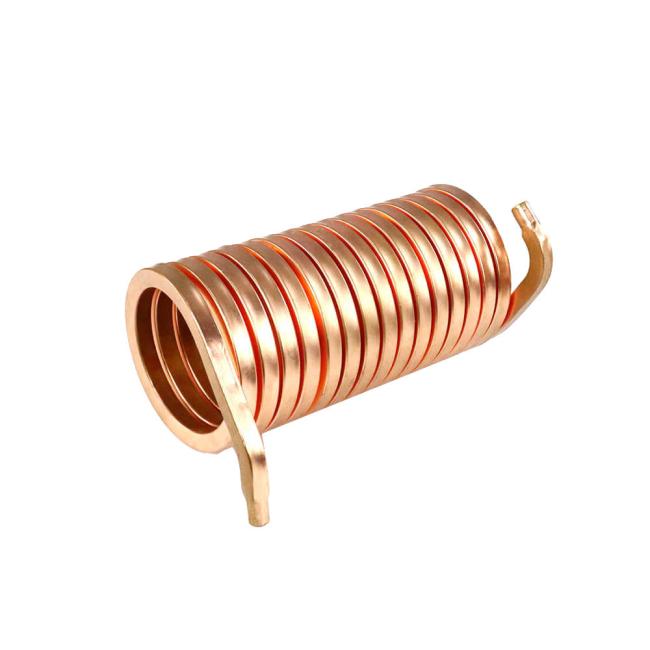

square brass tube bending.

Laser cutting and bending.

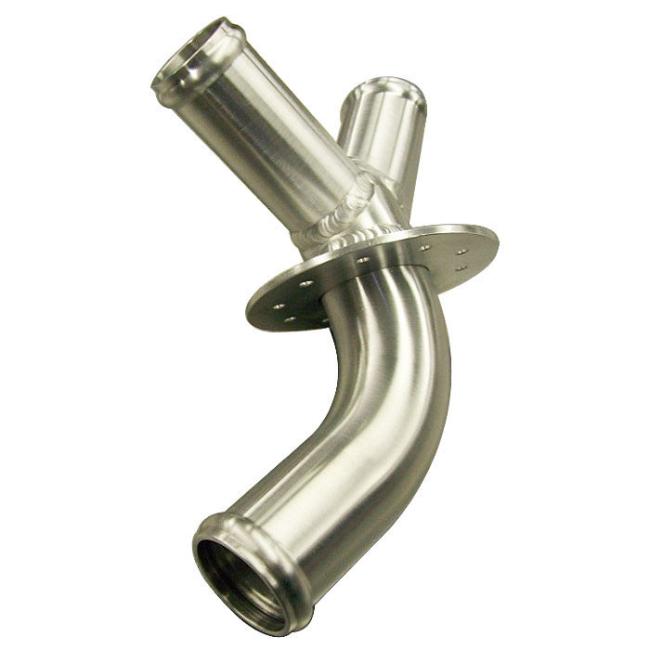

Bending  and welding.

Laser cutting and then bending.

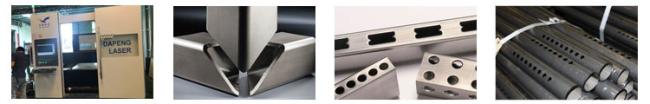

Step 1 : Material cutting.

laser cutter	intersecting line	profile hole	carbon steel

Thickness : 0.2mm to 50 mm
Max   Long: more than 6000 mm
Tolerance : ±0.1mm

Step 2 : Bending.

pipe bender	circular pipe bending	bending and welding	square tube bending

Feeding Precision: ±0.1 mm

Though Effective Distance: 6000mm

Max. Bending Angle: 190°

Max. Bending Capacity φ200 mm

Step 3 : Welding.

laser fiber welding	argon arc welding	MIG welding	SUS pipe welding

We also have high quality resistance welders,carbon-dioxide arc welding, etc. And welding robots.

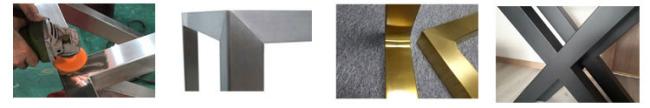

Step 4 : Surface treatment.

polishing	polishing & brushing	electroplating	powder coating

We offer polishing, brushing, chrome plating, electroplating, powder coating, spraying, blackening, shot blasting and so on.

Laser cutting material   (1) laser cutting plate TruPunch CNC Machine is equipping with cutting all kinds of sheet metal accurately: - Iron - Zinc plated - Aluminium coated -AISI 430 -AISI 304 Thanks to these machines, we are equipped to work with a wide range of thicknesses from 0.2mm up to 50mm, for sheets with a maximum size of 1500 x 3000 mm.     (2) 3D laser cutting pipe  machine It can cut various round, square, flat and irregular tubes in precision: - Iron pipe - Galvanized pipe - AISI 430 tube - AISI 304 tube It can handle a wide range of tubes thickness from 0.2 to 50mm, with a maximum size of 200mm*4800 mm

CNC punching - Iron plate -Galvanized sheet - Aluminum coating plate - Coating plate - Plastification/ laminate - AISI 430 - AISI 304 Equipping with sheets which size up to1500*3000 mm and thickness ranging from 0.2 to 50 mm.

Robot welding We have the following equipment at our disposal for precision welding: A robotic TIG (Tungsten Inert Gas) welding centre A robotic MIG (Metal-arc Inert Gas) welding centre Both centres carry out welding works with the help of special jigs of varying complexity. In our MIG centre, for example, we are able to carry out internal weldings in various types chamber kilns.

CNC turning machine   High precision, complex shape,high efficiency and low cost.   Tolerance : ±0.01mm.

5 axis machining center   High precision, complex shape, Low surface roughness, high efficiency and low cost.   Tolerance : ±0.01mm.

CNC Cylindrical grinder   Very high machining accuracy.   Tolerance : ±0.002mm

CNC flat grinder   Very high machining accuracy.   Tolerance : ±0.002mm

Zhong Shan lambert precision hardware CO., LTD specializes in sheet metal processing and CNC processing.

We have advanced equipments and experienced team. We always adhere to the improvement of production technology, committed to providing high quality products and efficient service.

Our services include: customized finished products, 3D printing, various metal products, spare parts,various sheet and tube profile processing, various products and spare parts's surface treatment.

For example: laser cutting parts, stamping parts, control boxes, instrument boxes, insulation boxes. OEM metal boxes, steel brackets, steel hotel tables, seats.

Welcome to visit us for cooperation.

Production meeting	Stamping workshop	Final inspection and packaging workshop

Raw maerial inspection	Precision inspection	Balance scale measurement
Internal inspection of workpiece	Salt spray test	The two sides confirmed

Method 1: shrink film, then bulk loading.

Method 2: shrink film + box + pallet / wooden case.

Method 3: As per customer's requirements or negotiated.
