China DWDM ZXMP M721 Sub-rack DX61 DX62 DX63 CX66 CX66A for sale

DWDM ZXMP M721 Sub-rack DX61 DX62 DX63 CX66 CX66A

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 7-15 days
Brand: ZTE
Product Description
Product Overview

DWDM ZXMP M721 Sub-rack DX61 DX62 DX63 CX66 CX66A

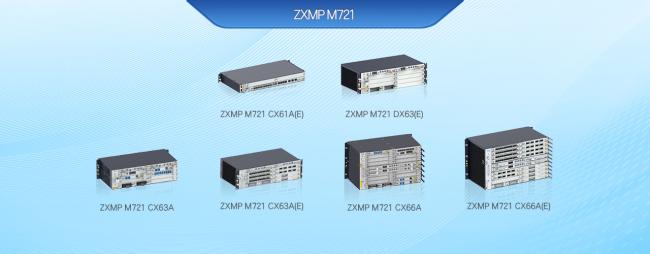

Product Appearance

The ZTE ZXMP M721

CX61A(E):55*446*240
CX63A/CX63A(E)/DX63(E):130*442*240
CX66A/CX66A(E):264*442*240



E1,STM-1/STM-4/STM-16/STM-64,FE/GE/10GE/40GE/50GE/100GE/400GE,FC100/FC200/FC400/FC800/FC1200/FC1600/FC3200,OTU1/OTU2/OTU2e/OTU4
OTU1/OTU2/OTU2e/OTU4/OTUC2/OTUC4



DC:-48V
AC:110V/220V
HVDC:240V

Rack(T-2200x600x300mm,Type IV)
N3M2DCM20-2C(A,LC)
DX62-DCF
DX62-DCB
Rack(T-2000x600x300mm,Type IV)
N3M2DCM40-2C(A,LC)
DX62-DCE
DX62-ACB
Rack(T-2200x600x300mm,Type III)
N3M2DCM10-2C(A,LC)
DX62-DCC
DX61-DC/ACB
Rack(T-2000x600x300mm,Type III)
N3M2DCM60-2C(A,LC)
DX62-ACF
DX61-DC/ACF
TS2C License
N3M2DCM80-2C(A,LC)
DX62-ACE
DX61-DC/ACE
TD2C License
N3M2DCM100-2C(A,LC)
DX62-ACC
DX61-DC/ACC
OTM License
N3M2DCM120-2C(A,LC)
DX62-DTC
N3M2NCP(II)
N3M1TS2CP license
N3M2DCM20-5C(A,LC)
DX62-ATC
N3M2NCP(I)
N3M1MQA2 license
N3M2DCM40-5C(A,LC)
DX62-DTF
N3M3NCP(I)
N3M1MQA1 license
N3M2DCM60-5C(A,LC)
DX62-ATF
N3M3NCP(II)
N3M1MJA license
N3M2DCM80-5C(A,LC)
DX62-DTE
N3M1SOP2(1550nm)
N3M1PW-DC
N3M2DCM100-5C(A,LC)
DX62-ATE
N3M1SOP2(1310nm)
N3M1PW-AC
N3M2DCM120-5C(A,LC)
DX62-DTB
N3M1SOP1(1550nm)
N3M1FAN
N3M2DCM Tray
DX62-ATB
N3M1SOP1(1310nm)

ZTE ZXMP M721 Product Specification

The ZTE ZXMP M721:

ZXMP M721 DX61 ( DC/AC Power )

ZXMP M721 DX62 ( DC/AC Power )

ZXMP M721 DX63 ( DC Power )

Rack dimension
2000/2200mm (H) × 600mm (W) × 300mm (D)
Sub-rack dimensions
1RU: 442mm (W) × 44mm (H) × 237.5mm (D)
2RU: 442mm (W) × 88.1mm (H) × 237.5mm (D)
Power supply
-48V or -60V DC (-72V~-40V)
110V or 220V AC (100V~240V)
Installation mode
ETS/IEC standard rack installation, hanging installation
Typical equipment power consumption
Single sub-rack(2RU DC input): < 280W
Single sub-rack(2RU AC input): < 250W
Single sub-rack(1RU): < 140W
Environmental parameter
Working temperature: 0℃~45℃
Working humidity: 10%~90%
Storage temperature: -40℃~70℃
