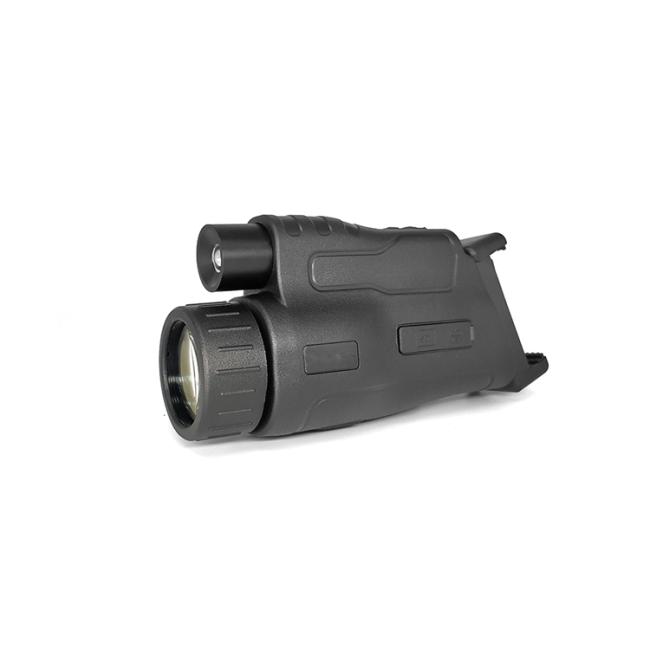

5x40 Digital Infrared Night Vision Monoculars Day And Night For Smartphone
5x40 Digital Night Vision Scope, Day And Night Infrared Monocular For Smartphone
Parameters for 5X40 Smartphone Night Monocular
Hardware button |
Power on/off compatible mode key |
| OK | |
| Infrared switch | |
| Mobile terminal operation | Preview/electronic zoom adjustment |
| Video,/photograph | |
| Color/B&W adjustment | |
| Download/playback | |
| Wide dynamic suppression/infrared light intensity adjustment | |
| Power | External power supply-DC 5V / 1A |
| Lithium battery 18650 2000mah 1 section | |
| Battery working time: the whole machine can work for more than 6 hours when the infrared light is off, and it can work for more than 4 hours when the infrared light is on | |
| Voice prompts | |
| Low battery warning | |
| Wireless network | 802.11 b / g / n |
| Video transmission via point-to-point connection | |
| WiFi transmission resolution:320x240 (it can be adjusted according to the effect) | |
| Operation system:Android and IOS | |
| APP | 4 modes (shooting, video, playback, setting) |
| Single frame image capture 2M | |
| Video and image recording 1080P30 frames | |
| Recording time segment setting | |
| Play videos and photos | |
| Download video to mobile phone and delete image | |
| Infrared light brightness adjustment | |
| Digital magnification | |
| Loop recording | |
| Video quality selection - High, Middle, Low | |
| Time stamp on/off | |
| Video encoding H.264 / H.265 | |
| SD card format | |
| Light source(50 / 60Hz) | |
| Video LED indicator light on/off | |
| Language setting | |
| Version query | |
| Net weight | 390g |
| Size | 180*60*85mm |
| Operating temperature range |
-10 ~ +50 degrees Celsius.
|
Introduction of Night Vision Monocular
| Digital magnification 5 times |
| Angle of view 7° |
| Lens diameter 40mm |
| Relative lens aperture 1:1.5 |
| 3m~∞ during the day; viewing the laser infrared light in the dark up to 200M (black and white/color) |
| The LED infrared light can reach 100M (black and white/color), and the low-light viewing distance can reach 1000M |
| CMOS high sensitivity sensor IMX323 |
| Size 1/2.9" |
| Video resolution 1920X1080 30 frames, 2M camera |
| 750nW laser infrared light 850nm, and 3W infrared light LED 850nm |
| Support SDHC 8GB~128GB SD card C10 |
| MSCD type / USB2.0 interface |
Operation guide
Step 1: Use WeChat or mobile browser to scan the QR code on the color box, and then download the APP software.
Step 2: Turn on the power switch of the night vision device.
Step 3: Open the APP software on the phone:
(1) Click the interface (connect device),
(2) Click on the interface (connect),
(3) Click the interface (CAMC-W007...) to enter the password interface, the first time you enter the password is 12345678, you do not need to enter it again, and then click (Connect) to connect to Wifi. .
(4) When the phone returns, the video preview will be displayed.

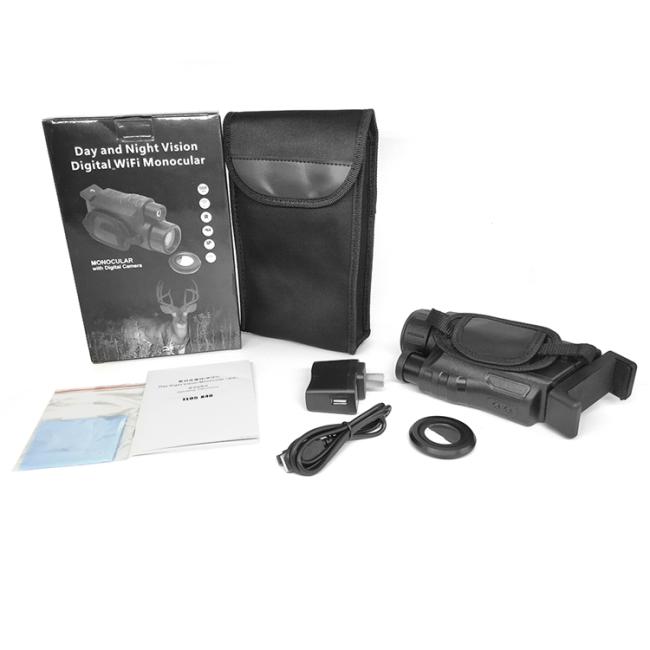

What's in a Standard Packaging Box?
Night Vision monoculars: 1
Soft bag: 1
Portable carrying box: 1
Cleaning cloth: 1
Manual: 1
etc, same as below picture:
We offer OEM / ODM service; Customize scopes according to your specific requirements.
