P1.875 COB Shelf LED Display
P1.25 P1.875 Portable COB Indoor Shelf LED Display For Store Advertising

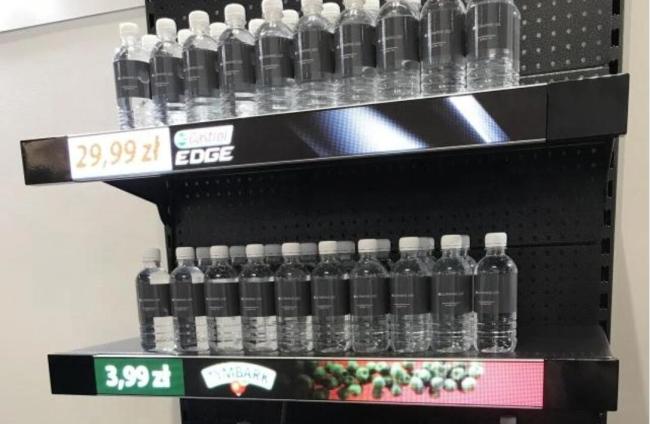

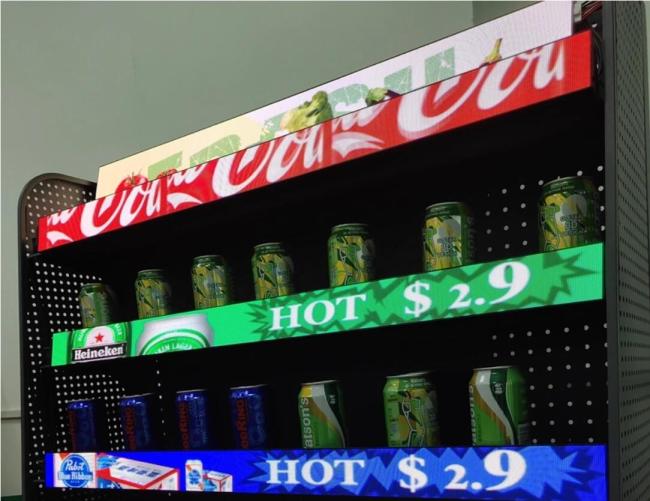

LED Shelf Display is designed to replicate key benefits of the online experience into physical retail stores. LED shelf display utilizes ruggedized shelf-edge displays combined with high definition optical sensors to automate intelligence into on-the-shelf inventory levels and planogram compliance, play optimal video based on screen view distance. The technologies work together to enhance operational efficiencies and to impove sales effects and shopping experience. LED digital shelf technology capable of delivering dynamic pricing, promotion, product and brand related information at the shelf edge
Specification
| Item | Parameters |
| Model | P1.875 COB |
| Pixel Pitch(mm) | 1.875 |
| Physical Density (dot/sqm) | 284,444 |
| LED Configuration | 1RGB |
| LED Type | COB |
| Module Size (mmxmm) | 150x60 |
| Module Resolution (PXxPX) | 80×40 |
| Scanning mode | 1/45 |
| Brightness(cd/sqm) | 500-800 |
| Grey Scale | 14bit |
| Refresh Rate(Hz) | 3840z |
| Drive Mode | Constant Current Drive |
| Horizontal Viewing Angle(Deg) | 170 |
| Vertical Viewing Angle(Deg) | 170 |
| Cabinet Resolution(PXxPX) | 160x32 |
| Module Power Consumption(w) | 40 |
| Cabinet Max Power Consumption(w) | 130 |
| Cabinet Average Power Consumption(w) | 40 |
| Cabinet Size(mmxmm) | 300x60x60mm |
| Cabinet Weight(kg) | 0.35kg |
| Cabinet Thickness(mm) | 60mm |
| Cabinet Material | Die-casting Aluminum |
| Color(M) | 16.7 |
| Input Voltage | AC100V-240V +/-10% |
| Refresh Frame Frequency(Hz) | 50-60 |
| Protection Level | IP43 |
| Working Environment | Indoor |
| Working Temperature(ºC) | -40°-+60° |
| Storage Humidity(RH) | 40%-60% |
| Life Span(H) | 100,000 |
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees
FAQ:
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time?
A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Our service: Buy guides
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
Buy guides:
In order to save you time avoid no necessary troubles ,please follow the steps bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( what are you going to do with the LED Curtain)
4,Star effect or video effect which you need.
