57BYGN Series Hybrid Stepper Motor 12v Dc Stepping Motor
Hetai factory direct sale 57BYGN series high quality hybrid stepper motor 12v dc stepping motor
What are stepper motors good for?
Positioning – Since steppers move in precise repeatable steps, they excel in applications requiring precise positioning such as 3D printers, CNC, Camera platforms and X,Y Plotters. Some disk drives also use stepper motors to position the read/write head.
Speed Control – Precise increments of movement also allow for excellent control of rotational speed for process automation and robotics.
Low Speed Torque - Normal DC motors don't have very much torque at low speeds. A Stepper motor has maximum torque at low speeds, so they are a good choice for applications requiring low speed with high precision.
Electrical Specification Of Hybrid Stepper Motor
|
Product Name
|
Hybrid Stepper Motor
|
|
Step Accuracy
|
± 5%
|
|
Dielectric Strength
|
500V AC 1minute
|
|
Ambient Temperature
|
-20℃~50℃
|
|
Insulation resistance
|
100MΩ Min.500V DC
|
|
Step Angle
|
1.8°
|
|
Lead wire
|
6
|
|
Voltage (V)
|
12
|
|
Current (A/Phase)
|
0.38
|
|
Holding Torque (Kg.cm)
|
3.0 Kg.cm
|

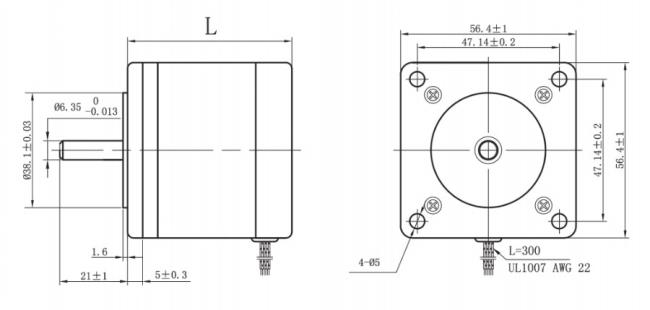

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Hetai's Customers
A variety of types of stepper motors are available for you to choose, support customization.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
CNC Center
Keyence Projector&Laser rangefinder
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
Certification
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
