Nema23 Hybrid Stepper Motor 1.8 Step Angle 5.07V 1.41A 3.6Ω 12.5kg.Cm
Nema23 hybrid stepper motor 1.8 step angle 5.07V 1.41A 3.6Ω 12.5kg.cm stepping motor
The speed of a stepper motor depends on the pulse frequency, the number of rotor teeth and the number of beats. Its angular velocity is proportional to the pulse frequency and synchronized with the pulse in time. Therefore, when the number of rotor teeth and the number of running beats are fixed, the required speed can be obtained as long as the pulse frequency is controlled. Since the stepper motor is started by its synchronous torque, in order not to lose the step, the starting frequency is not high. Especially with the increase of power, the diameter of the rotor increases, the inertia increases, and the starting frequency and the highest operating frequency may differ by as much as ten times.
Electrical Specification Of Hybrid Stepper Motor
|
Product Name
|
Hybrid Stepper Motor
|
|
Step Accuracy
|
± 5%
|
|
Dielectric Strength
|
500V AC 1minute
|
|
Ambient Temperature
|
-20℃~50℃
|
|
Insulation resistance
|
100MΩ Min.500VDC
|
|
Step Angle
|
1.8°
|
|
Lead wire
|
4
|
|
Voltage (V)
|
5.07
|
|
Current (A/Phase)
|
1.41
|
|
Holding Torque (kg.cm)
|
12.5
|

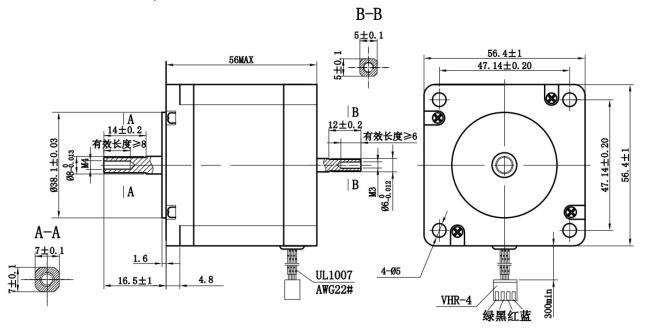

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
CNC Center
High Level Testing Equipment
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
