Nema34 85mm 85HS68 Series 1.8 Step Motors 3N.M 2.8mH 0.6OHMS 2.7V
Nema34 85mm 85HS68-4004-001-06E 1.8° Step Angle 3N.m 2.8mH 0.6OHMS 2.7V step motors
High precision: Stepper motors can achieve high-precision control by controlling parameters such as motor drive current and pulse number, and usually can achieve a precision of several microns or even several nanometers.
High reliability: Since the stepper motor has no mechanical parts such as brushes and commutators, it has high reliability and stability, and is not easily affected by factors such as the environment and load.
Wide range of applications: Stepper motors can be used in many occasions, such as CNC machine tools, 3D printers, automated production lines, etc., and have strong applicability.
|
Product Name
|
Stepper Motor
|
|
Step Accuracy
|
± 5%
|
|
Dielectric Strength
|
500V AC 1minute
|
|
Ambient Temperature
|
-20℃~50℃
|
|
Insulation resistance
|
100MΩ Min.500V DC
|
|
Step Angle
|
1.8°
|
|
Lead wire
|
4
|
|
Voltage (V)
|
2.7
|
|
Inductance(mh/phase)
|
2.8
|
|
Resistance(ohms)
|
0.6
|
|
Current (A/Phase)
|
4.5
|
|
Holding Torque (N.m)
|
3
|

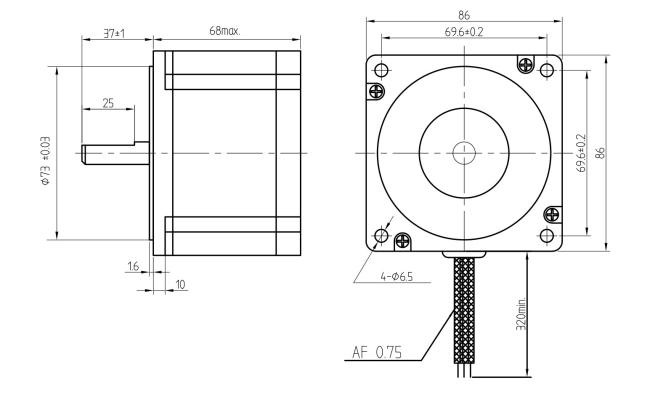

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
Automatic assembly line
High-end test equipment
Certification
Packing&Delivery
Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
