63BLX01A Series Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W

63BLX01A-001WG15 with wheels 220rpm 1A 36V 114W DC worm gearbox motor

Advantages of worm gear reducer:

1. The structure of the worm gear reducer is integrated, with beautiful appearance and good rigidity.

2. There are two types of cabinets: basic type (the cabinet is a vertical or horizontal structure with a foot plate) and the all-round type (the box is a cuboid, with fixed screw holes on multiple sides, without a foot plate or an additional bottom.

3. There are two types of input shaft connection: basic type (single input shaft and double input shaft), and motor flange.

4. There are two types of output shaft structure: basic type (single output shaft, double output shaft) and hollow output shaft.

5. The direction of the position of the output and input shafts is that the input shaft is down and up; the output shaft is up and down; the input shaft is up and down.

6. Two or three reducers can be used to form a multi-stage reducer to obtain a large transmission ratio. Installation type and output method: base type, flange type and torque arm type installation, solid shaft and hollow shaft output and worm direct output.

Electrical Specification:

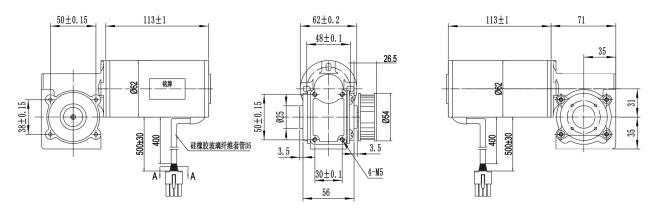

Mechanical Dimension



Product Range

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor

Hetai Motor Production Process


High-quality Raw Materials



​Brushless Motor Final Inspection

Measure the Motor Length	Measure the Shaft Length	Measure the Ouler Circle
Measure the Screw Hole Distance	Measure the Length of Wire	Measure the Length of PVC
Test the Resistance	Listening	Test the speed



Automatic assembly line



Professional motor testing equipment



Package&Delivery
