63BLX01 Series 24VDC Worm Gearbox Motor 220rpm 1A 3.5N.M 114W
63BLX01-XXWG15L 220rpm 1A 3.5N.m 114W 24VDC worm gearbox motor
Hetai Products’ Worm Gear Motors are designed to generate high torque in a small package size. Worm Gear Motors are great for applications that require a self- locking or breaking feature since the output shaft can’t rotate when there’s no power applied. The worm gear makes it so the output shaft of the gear motor is oriented 90 degrees to the motor body. This right angle output has advantages in applications where overall length is limited. With various reduction ratios, precision cut gears, voltages and sizes, Hetai Products has a DC Worm Gear Motor solution for your application.
Electrical Specification:
|
Product Name
|
DC Worm Gear motor
|
|
Model
|
63BLX01-XXWG15L
|
|
Reduction Ratio
|
1:15
|
|
Voltage (V)
|
24 V
|
|
Rated Speed with gearbox (RPM)
|
220
|
|
Rated Torque with gearbox (N.M)
|
3.5
|
|
Power (W)
|
114
|
|
Insulation class
|
B
|

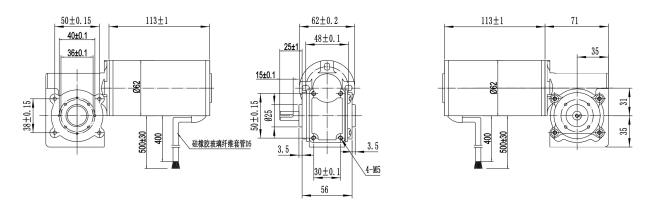

Mechanical Dimension
Product Range
Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor
Hetai Motor Production Process
High-quality Raw Materials
Brushless Motor Final Inspection
 |
||||
| Measure the Motor Length | Measure the Shaft Length | Measure the Ouler Circle | ||
 |
||||
| Measure the Screw Hole Distance | Measure the Length of Wire | Measure the Length of PVC | ||
 |
||||
| Test the Resistance | Listening | Test the speed | ||
Automatic assembly line
Hetai 2023 Hannover Messe, Germany
Package&Delivery
Certification
