Micro Mini 2 Nm Stepper Motor Nema 23 20kg High Torque 2.45n M 57HN
A stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This feature is obtained thanks to the internal structure of the motor, and allows to know the exact angular position of the shaft by simply counting how may steps have been performed, with no need for a sensor. This feature also makes it fit for a wide range of applications.
Electrical Specification:
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57HN41-001-01 | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.4 | 9.5 | 41 | 0.43 |
| 57HN41-003-04 | 1.8 | 4 | 7.0 | 1.0 | 7.0 | 14.7 | 9.0 | 41 | 0.43 |
| 57HN46-005A | 1.8 | 4 | 2.3 | 4.2 | 0.55 | 1.5 | 10.6 | 46 | 0.54 |
| 57HN46-003A | 1.8 | 4 | 8.2 | 1.0 | 8.2 | 18 | 10.5 | 46 | 0.54 |
| 57HN51-003A | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.4 | 9.5 | 51 | 0.63 |
| 57HN51-005 | 1.8 | 4 | 4.0 | 2.0 | 2.0 | 6.5 | 12 | 51 | 0.63 |
| 57HN56-002 | 1.8 | 4 | 9.0 | 2.5 | 3.6 | 11 | 15 | 56 | 0.68 |
| 57HN56-005-02 | 1.8 | 4 | 6.8 | 1.0 | 6.8 | 24 | 12 | 56 | 0.68 |
| 57HN67-001-15 | 1.8 | 4 | 5.76 | 1.6 | 3.6 | 12 | 19 | 67 | 0.70 |
| 57HN67-004-07 | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.8 | 14 | 67 | 0.70 |
*Products can be customized by special request.
*Produdts can match gearbox 42.52.56
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

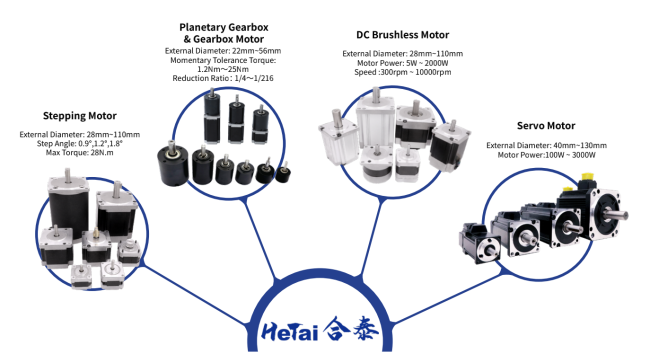

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
