1.5 Kw Nema 42 Brushless Dc Motor Permanent Magnet 2300rpm 230v 6.5nm For Shredder
NEMA 42 powerful 1500w Low Noise IP54 industrial brushless dc motor for Shredder
Resistance -------------------------------------1.47OHMS
Insulation ---------------------------------------Class B
Withstand voltage ----------------------------3000VAC, 20mA,1S
IP level ---------------------------------------- IP 54
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 1500V AC 1min
Max. radial force --------------------------- 330N (10mm from front flange)
Max. axial force ---------------------------- 100N
Electrical Specification
| Specification | Unit | 110BLF03A |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Nominal Voltage | VDC | 230 |
| Rated Speed | Rpm | 2300 |
| No-load Speed | Rpm | 3500 |
| No-load Current | A | 2 |
| Rated Torque | N.m | 6.5 |
| Rated Power | W | 1500 |
| Peak Torque | N.m | 19.5 |
| Torque Constant | N.m/A | 0.887 |
| Back EMF constant | V/kRPM | 92.5 |
| Body Length | mm | 216.0 |
| Weight | Kg | 7.88 |
Wiring Diagram
|
FUNCTION |
COLOR | ||
| +5V | RED | UL1007 26AWG | |
| HALL A | YELLOW | ||
| HALLB | GREEN | ||
| HALLC | BLUE | ||
| GND | BLACK | ||
| PHASE A | YELLOW | UL1332 16AWG | |
| PHASE B | GREEN | ||
| PHASE C | BLUE | ||

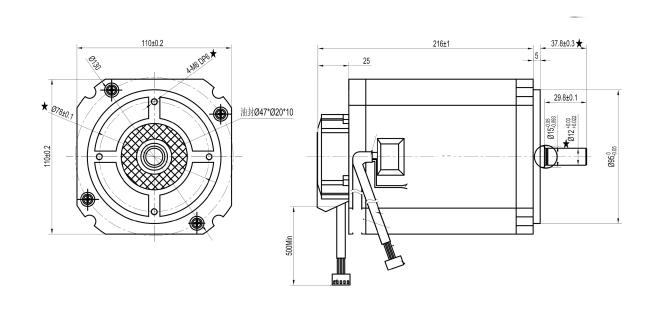

Mechanical Dimension
