42bygh 1.2a Nema 17 Stepper Motor 6 Wire 1.8 4.6V 0.35Nm 311 oz 2 Phase
42BYGH808-08 2 phase customizable NEMA 17 1.8 degree 7.2V 3kg.cm hybrid stepper motor
Voltage: 4.6 V
Inductance: 4±20% MH
Product Name: Hybrid Stepping Motor
Ambient Temperature: -20℃~+50℃
Dielectric Strength: 500VAC 1 Minute
Temperature Rise: 80 ℃ Max
Step Accuracy: ± 5% Insulation
Insulation Resistance: 100MΩ Min.500VC DC
Electrical Specification
|
Model Number |
42BYGH808-08 |
|
Step Accuracy |
± 5% |
|
Step Angle |
1.8° |
|

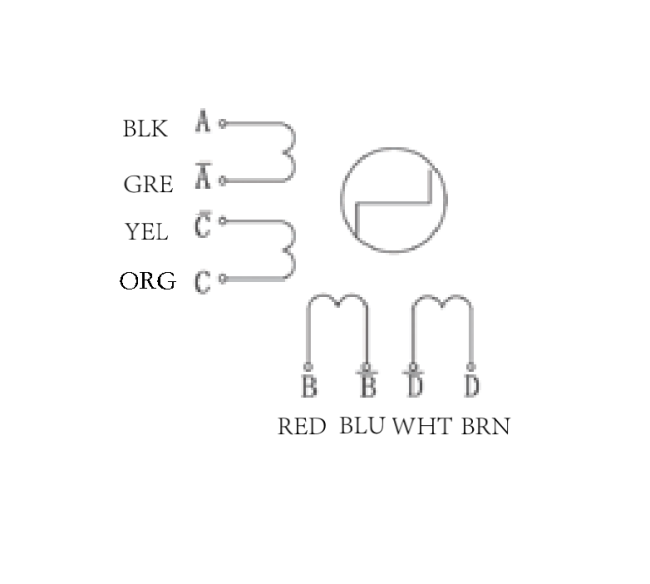

Lead Wire |
8 |
|
Voltage (V) |
4.6 |
|
Current (A/Phase) |
1.2 |
|
Holding Torque (N.m) |
0.35 |
|
Resistance (Ω/phase) |
4.6±10% |
|
Inductance (mH/phase) |
4±20% |
|
Motor length (MM) |
48 |
|
Motor Weight(Kg) |
0.34 |
|
Insulation Class |
B |
*Products can be customized by special request.
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGH208-52A | 1.8 | 4 | 12 | 0.4 | 30 | 42 | 2500 | 34 | 0.20 |
| 42BYGH243-03 | 1.8 | 4 | 2.6 | 1 | 2.6 | 3.2 | 1800 | 34 | 0.20 |
| 42BYGH622-28A | 1.8 | 4 | 4.8 | 1 | 4.8 | 6.0 | 2900 | 40 | 0.24 |
| 42BYGH613-68A | 1.8 | 4 | 2.5 | 1.7 | 1.5 | 2.5 | 3500 | 40 | 0.24 |
| 42BYGH705-07 | 1.8 | 4 | 12 | 0.3 | 40 | 80 | 4000 | 44 | 0.30 |
| 42BYGH721A | 1.8 | 6 | 10 | 0.25 | 40 | 36 | 2000 | 44 | 0.30 |
| 42BYGH801-36 | 1.8 | 6 | 12 | 0.4 | 30 | 22 | 3800 | 48 | 0.34 |
| 42BYGH872A | 1.8 | 4 | 2.8 | 1.7 | 1.65 | 2.8 | 4500 | 48 | 0.34 |
| 42BYGH910-02 | 1.8 | 4 | 5.1 | 1.5 | 3.4 | 8.0 | 8500 | 60 | 0.49 |
| 42BYGH905-13 | 1.8 | 4 | 3.15 | 1.5 | 2.1 | 5.0 | 6800 | 60 | 0.49 |
*Products can be customized by special request.
*Products can match gearbox 36.42

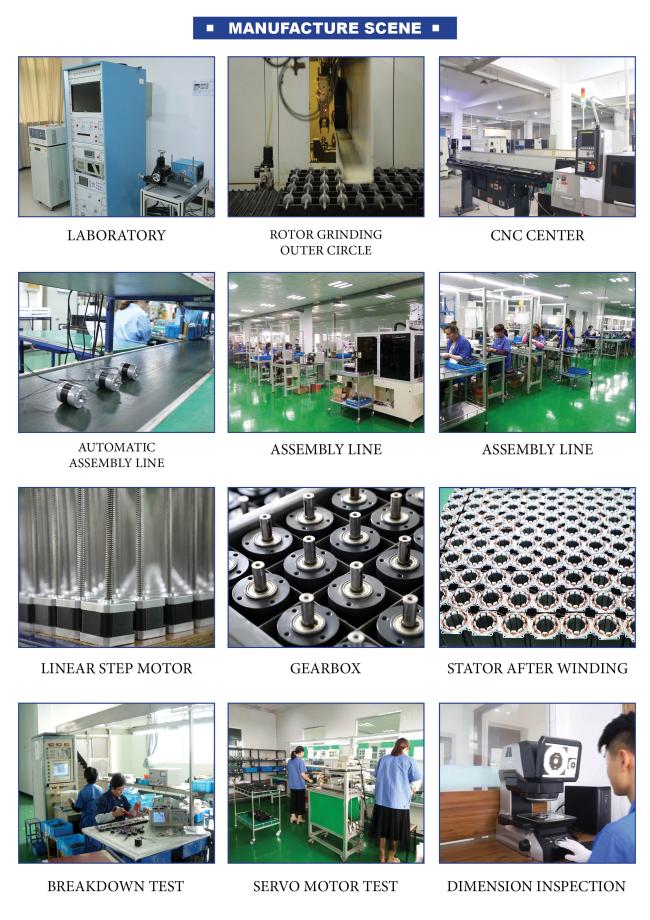

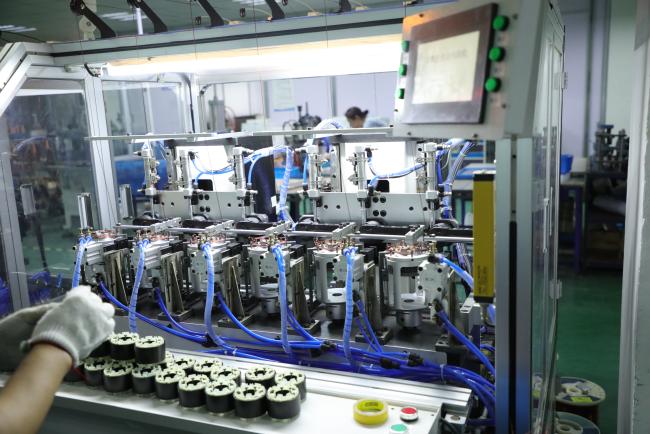

Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
The Industrial applications of stepping motor include high speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or ball screws. In the field of optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices
