4 Wires Hybrid Stepper Motor 280 Oz 6V 0.26nm 0.8A 42BYGHM621A
42BYGHM621A 0.8A 6V hybrid type space-saving step motor Wholesale Customized High Effciency CE ROHS
Advantages:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at stand still(if the windings are energized)
3. Precise positioning and repeatabilityof movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is non cumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less
costly to control.
7. It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input
pulses.
Electrical Specification:
|
Model Number |
42BYGHM621A |
|
Step Accuracy |
± 5% |
|
Step Angle |
0.9° |
|
Lead Wire |
4 |
|
Voltage (V) |
6 |
|
Current (A/Phase) |
0.8 |
|
Holding Torque (N.m) |
0.26 |
|
Resistance (Ω/phase) |
28 |
|
Inductance (mH/phase) |
60 |
|
Motor length (MM) |
40 |
|
Motr Weight(K/g) |
0.24 |
|
Insulation Class |
B |
*Products can be customized by special request.
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGHM203 | 0.9 | 4 | 10 | 0.5 | 20 | 40 | 2100 | 34 | 0.20 |
| 42BYGHM213-07A | 0.9 | 4 | 8 | 1 | 8.0 | 13 | 2200 | 34 | 0.20 |
| 42BYGHM607-16 | 0.9 | 4 | 2.6 | 1.7 | 1.5 | 3.2 | 3200 | 40 | 0.24 |
| 42BYGHM619-08 | 0.9 | 4 | 11.2 | 0.4 | 28 | 60 | 2800 | 40 | 0.24 |
| 42BYGHM805 | 0.9 | 4 | 3.5 | 1 | 3.5 | 7.6 | 3700 | 48 | 0.34 |
| 42BYGHM810 | 0.9 | 4 | 2.4 | 2.4 | 1.0 | 1.8 | 4800 | 48 | 0.34 |
*Products can be customized by special request.

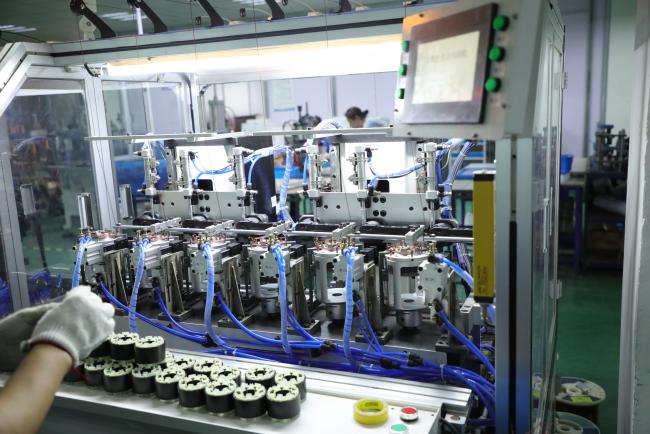

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
