1.8 Degree High Torque Micro 269 oz stepper motor 28 Kg Cm 115mm 57BYGH
57BYGH customizable 1.8 Degree 28 Kg.cm Length 115mm Small Stepper Motor
Type:
Hybrid stepping motor
Torque:
28 Kg.cm
Construction:
Electro-Magnetism
Protect Feature:
Dustproof
|
Model Number
|
57BYGH115-021 |
|
Step Accuracy
|
± 5%
|
|
Step Angle
|
1.8°
|
|
Lead Wire
|
4 |
|
Voltage (V)
|
4.2
|
|
Current (A/Phase)
|
3
|
|
Holding Torque (Kg.cm)
|
28
|
| Resistance (Ω/phase) | 1.4 |
| Inductance (mH/phase) | 7 |
| Motor length (MM) | 115 |
| Motor Weight(Kg) | 0.7 |
| Insulation Class | B |
*Products can be customized by special request.

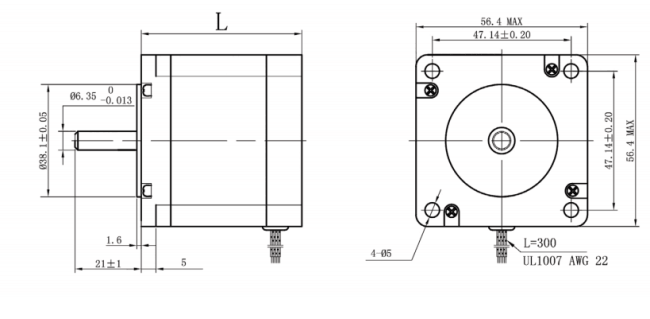

Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGH001A | 1.8 | 4 | 6.0 | 0.5 | 12 | 20 | 3.5 | 41 | 0.45 |
| 57BYGH048-11 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 5.0 | 6.0 | 41 | 0.45 |
| 57BYGH201-22A | 1.8 | 4 | 6.6 | 0.6 | 11 | 25 | 7.0 | 51 | 0.65 |
| 57BYGH218-45 | 1.8 | 4 | 2.6 | 2.0 | 1.3 | 4 | 8.0 | 51 | 0.65 |
| 57BYGH420-77 | 1.8 | 6 | 3.8 | 2.0 | 1.9 | 3.5 | 9.0 | 56 | 0.70 |
| 57BYGH432-63A | 1.8 | 6 | 2.4 | 3.0 | 0.8 | 1.2 | 9.0 | 56 | 0.70 |
| 57BYGH633-131 | 1.8 | 6 | 3.0 | 3.0 | 1.0 | 1.8 | 13.5 | 78 | 1.00 |
| 57BYGH639-10E | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.6 | 18 | 78 | 1.13 |
| 57BYGH801-01 | 1.8 | 6 | 3.3 | 3.0 | 1.1 | 2.5 | 16 | 84 | 1.13 |
| 57BYGH815 | 1.8 | 4 | 7.36 | 1.6 | 4.6 | 16 | 20 | 84 | 1.13 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor.
