57BYGN400A 0.78nm 694 oz 1.8 Degree 56mm High Torque Nema 23 Step Motor
57BYGN400A Customization 1.8 Degree 56mm High Torque Nema 23 Step Motor
Advantages:
1. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
2. The motors response to digital input pulses provides open-loop control, making the motor simpler and less
costly to control.
3. It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
4. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input
pulses.
Electrical Specification:
|
Model Number |
57BYGN400A |
|
Step Accuracy |
± 5% |
|
Step Angle |
1.8° |
|
Lead Wire |
4 |
|
Voltage (V) |
5.5 |
|
Current (A/Phase) |
1.1 |
|
Holding Torque (N.m) |
0.78 |
|
Resistance (Ω/phase) |
5.0 |
|
Inductance (mH/phase) |
12 |
|
Motor length (MM) |
56 |
|
Motr Weight(K/g) |
0.65 |
|
Insulation Class |
B |
*Products can be customized by special request.
Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 57BYGN001 | 1.8 | 6 | 12 | 0.38 | 32 | 25 | 3.0 | 41 | 0.45 |
| 57BYGN027 | 1.8 | 4 | 2.8 | 1.4 | 2.1 | 3.5 | 3.9 | 41 | 0.45 |
| 57BYGN200-19A | 1.8 | 6 | 5 | 1.0 | 5.0 | 11.5 | 5.8 | 51 | 0.65 |
| 57BYGN204 | 1.8 | 6 | 11.2 | 0.4 | 28 | 30 | 3.8 | 51 | 0.65 |
| 57BYGN400-11A | 1.8 | 4 | 5.5 | 1.1 | 5.0 | 12 | 7.8 | 56 | 0.70 |
| 57BYGN412 | 1.8 | 4 | 4.4 | 2.0 | 2.2 | 6.3 | 9.0 | 56 | 0.70 |
*Products can be customized by special request.
*Can match with gearbox 42, 52, 56
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
FAQ
1. Are you a factory?

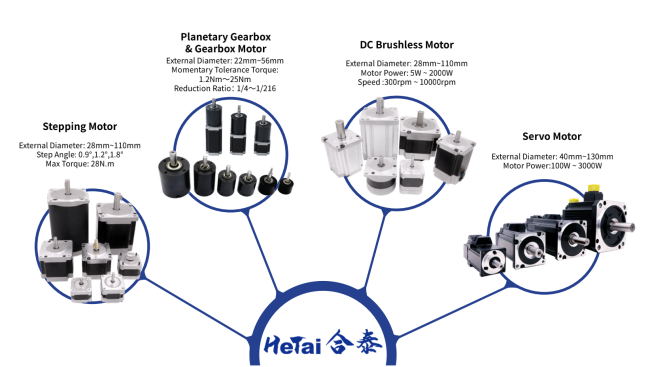

Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
