Mini Nema 23 57mm High Torque Stepper Motors 0.95nm 3 Oz In 57HN51
57HN51-003A 1.8 Degree Nema23 Stepper Motor High Torque Mini Nema23 Motor Stepper
Applications of Stepper Motors
-3D printing equipment.
-Textile machines.
-Printing presses.
-Gaming machines.
-Medical imaging machinery.
-Small robotics.
-CNC milling machines.
-Welding equipment.
Electrical Specification:
|
Model Number
|
57HN51-003A |
|
Step Accuracy
|
± 5%
|
|
Step Angle
|
1.8°
|
|
Lead Wire
|
4 |
|
Voltage (V)
|
1.5
|
|
Current (A/Phase)
|
3
|
|
Holding Torque (N.m)
|
0.95
|
| Resistance (Ω/phase) | 0.5 |
| Inductance (mH/phase) | 1.4 |
| Motor length (MM) | 51 |
| Motr Weight(K/g) | 0.63 |
| Insulation Class | B |
*Products can be customized by special request.
|
MODEL |
STEP ANGLE |
LEAD WIRE |
VOLTAGE |
CURRENT |
RESISTANCE |
INDUCTANCE |
HOLDING TORQUE |
MOTOR HEIGHT |
MOTOR WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
|
57HN41-001-01 |
1.8 |
4 |
2.1 |
4.2 |
0.5 |
1.4 |
9.5 |
41 |
0.43 |
|
57HN41-003-04 |
1.8 |
4 |
7.0 |
1.0 |
7.0 |
14.7 |
9.0 |
41 |
0.43 |
|
57HN46-005A |
1.8 |
4 |
2.3 |
4.2 |
0.55 |
1.5 |
10.6 |
46 |
0.54 |
|
57HN46-003A |
1.8 |
4 |
8.2 |
1.0 |
8.2 |
18 |
10.5 |
46 |
0.54 |
|
57HN51-003A |
1.8 |
4 |
1.5 |
3.0 |
0.5 |
1.4 |
9.5 |
51 |
0.63 |
|
57HN51-005 |
1.8 |
4 |
4.0 |
2.0 |
2.0 |
6.5 |
12 |
51 |
0.63 |
|
57HN56-002 |
1.8 |
4 |
9.0 |
2.5 |
3.6 |
11 |
15 |
56 |
0.68 |
|
57HN56-005-02 |
1.8 |
4 |
6.8 |
1.0 |
6.8 |
24 |
12 |
56 |
0.68 |
|
57HN67-001-15 |
1.8 |
4 |
5.76 |
1.6 |
3.6 |
12 |
19 |
67 |
0.70 |
|
57HN67-004-07 |
1.8 |
4 |
1.5 |
3.0 |
0.5 |
1.8 |
14 |
67 |
0.70 |
*Products can be customized by special request.
*Produdts can match gearbox 42.52.56

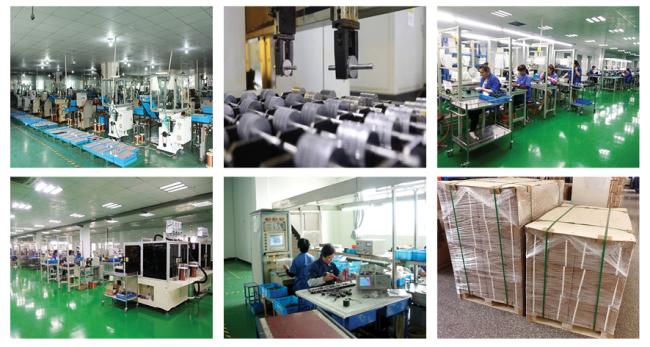

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
