Square Small 8.7 Nm 85 kg cm Stepper Motor High Torque 1.8 6.5 A 85HS126
85HS126-6504-005E China factory 1.8 degrees 126mm 8.7 Nm 6.5 A micro hybrid stepper motor
Product Name:
Stepper motor
Voltage:
1.7VDC
Length:
126mm
Weight:
3.8kg
Frame size:
85*85mm
Ambient Temperature:
-20 °C ~ +50 °C
Suitable Driver:
HTD 872A
Electrical Specification
| Model Number | 85HS97-3008-003E |
| Step Accuracy | ± 5% |
| Step Angle | 1.8° |
| Lead Wire | 4 |
| Voltage (V) | 1.7 |
| Current (A/Phase) | 6.5 |
| Holding Torque (N.m) | 8.7 |
| Resistance (Ω/phase) | 0.27 |
| Inductance (mH/phase) | 2.86 |
| Motor length (MM) | 126 |
| Motor Weight(Kg) | 3.8 |
| Insulation Class | B |
*Products can be customized by special request.
*Wiring Diagram
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (N.M) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 85HS68-1404-001 | 1.8 | 4 | 5.6 | 1.4 | 4.0 | 24.0 | 2.8 | 68 | 1.8 |
| 85HS68-4004-001 | 1.8 | 4 | 2.4 | 4.0 | 0.6 | 2.8 | 2.8 | 68 | 1.8 |
| 85HS80-4208-001-02 | 1.8 | 8 | 4.6 | 2.97 | 1.55 | 6.76 | 3.2 | 80 | 2.3 |
| 85HS80-5504-001-06 | 1.8 | 4 | 1.6 | 4.0 | 0.4 | 3.5 | 3.0 | 80 | 2.3 |
| 85HS97-3008-001 | 1.8 | 8 | 4.8 | 3.0 | 1.6 | 8.0 | 5.0 | 97 | 2.8 |
| 85HS97-4006-001 | 1.8 | 6 | 3.4 | 4.0 | 1.0 | 5.0 | 4.4 | 97 | 2.8 |
| 85HS116-4208-001 | 1.8 | 8 | 5.0 | 4.2 | 1.2 | 6.5 | 6.0 | 116 | 3.6 |
| 85HS116-5004-001 | 1.8 | 4 | 4.5 | 5.0 | 0.9 | 11.0 | 8.5 | 116 | 3.6 |
| 85HS126-4008-001 | 1.8 | 8 | 6.0 | 4.0 | 1.5 | 8.0 | 6.8 | 126 | 3.8 |
| 85HS126-6408-001 | 1.8 | 8 | 1.53 | 6.4 | 0.536 | 2.86 | 6.2 | 126 | 3.8 |
| 85HS131-3004-001 | 1.8 | 4 | 5.1 | 3.0 | 1.7 | 18.0 | 9.0 | 131 | 4.2 |
| 85HS131-7004-001 | 1.8 | 4 | 2.8 | 7.0 | 0.4 | 4.0 | 9.0 | 131 | 4.2 |
| 85HS155-5004-001 | 1.8 | 4 | 4.0 | 5.0 | 0.8 | 10.0 | 11.0 | 155 | 5.0 |
| 85HS155-6504-001 | 1.8 | 4 | 3.9 | 6.5 | 0.6 | 7.0 | 10.0 | 155 | 5.0 |
*Products can be customized by special request.

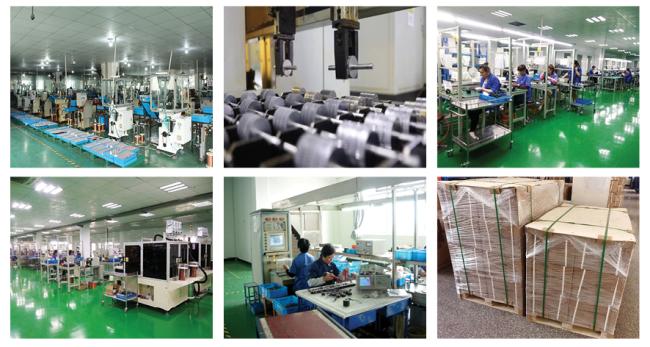

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well
