42mm Nema 17 Brushless DC Motor 8Pole 24V 3Phase 0.188Nm 4000RPM
42mm Nema 17 Brushless DC Motor 8Pole 24V 3Phase 0.188Nm 4000RPM
Electrical Specification Of Brushless DC Motor
| Model | ||||
| Specification | Unit | 42BLF01 | 42BLF02 | 42BLF03 |
| Number Of Phases | Phase | 3 | ||
| Number Of Poles | Poles | 8 | ||
| Rated Voltage | VDC | 24 | ||
| Rated Speed | Rpm | 4000 | ||
| Rated Current | A | 1.5 | 3.1 | 4.17 |
| Rated Torque | N.m | 0.063 | 0.130 | 0.188 |
| Rated Power | W | 26 | 54 | 78 |
| Peak Torque | mN.m | 0.189 | 0.390 | 0.560 |
| Peak Current | Amps | 4.5 | 9.3 | 12.5 |
| Torque Constant | N.m/A | 0.042 | 0.042 | 0.045 |
| Body Length | mm | 47 | 63 | 79 |
| Weight | Kg | 0.30 | 0.45 | 0.60 |
You can download our 42BLF Brushless DC Motor product brochure:42BLF.pdf
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL3265 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE | |

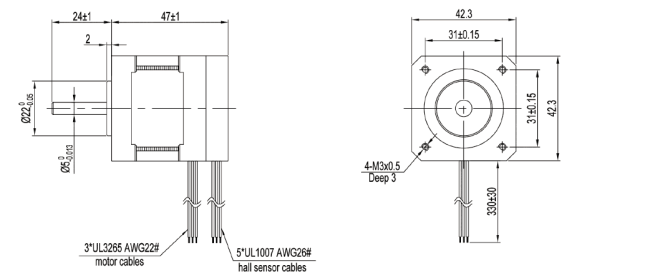

Mechanical Dimension Of Brushless DC Motor
