Nema 23 52 Mm*52 Mm 9.6 V 1 A 1.8 Degree Stepper Motor With Gearbox Factory Price

A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors. The rotor of a hybrid stepper motor is axially magnetized like a permanent magnet stepper motor, and the stator is electromagnetically energized like a variable reluctance stepper motor. Both the stator and rotor are multi-toothed.

Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to convert direct current into time-sharing power supply, multi-phase sequential control current, use this current to power the stepper motor, the stepper motor can work normally. The driver is a time-sharing power supply for the stepper motor, a multi-phase sequential controller.

Electrical Specification:

GEARBOX Electrical Specification



Out diameter 56mm Powder metallurgy



Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤450	≤200	≤1000	≤0.03	≤0.1	≤1.5



Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	2.0	6.0	81%	41.3	491	1
1/6
1/15	8.0	25	72%	59.6	700	2
1/18
1/26
1/47	16	50	72%	59.6	700	2
1/66



Mechanical Dimension



Stepper Motor Final Inspection

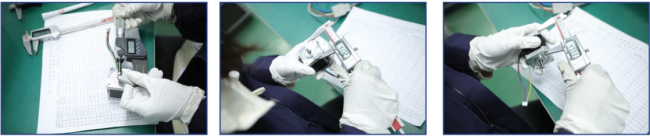

Measure the Length & Diameter of the shaft	Measure the Shape of the flange	Measure the Baby Length

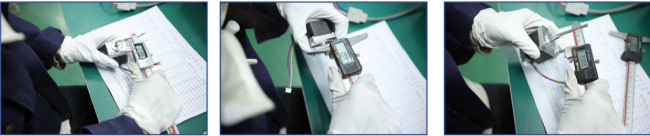

Measure the Outer Diameter of Spigot	Measure the Length of Spigot	Measure the Screw Hole Distance

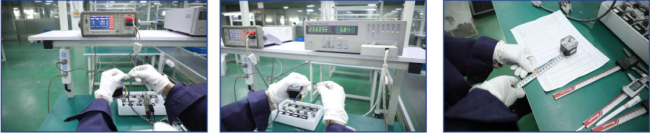

Test the Resistance	Test the Inductance	Measure the Wire Length



Certificate

Stepper motor ROHS report Date: June 09, 2021	BLDC Motor ROHS report Date: June 09, 2021	CE cetificate

IATF 16949: 2016 Valid until: 02 June 2024	ISO 9001: 2015 Valid until: 02 June 2024



Production Process

Strict Control Of Material

Gearbox	Material Storage	Split Riveting

Production Equipment

CNC-1	CNC-2	Machining Center

Large-scale Production

Servo Pipeline	Assembly Line	Automatic Assembly Line

Strict Inspection

End Cover Bearing Inspection	Shaft Shape Check	Shape Inspection

Bulk Shipment
