Low Noise 167 Rpm 28mm NEMA 11 0.12A 24v Dc Motor With Gearbox
28mm NEMA 11 Low Noise DC Brush Gear Motor 24V 167 Rpm 0.12A
Construction of Brushed DC motor
It typically consists of a pair of permanent magnets named as the stator and a motor coil named as the rotor connected to a commutator. In this motor, armature winding is on rotar and permanent magnets are always on the stator.
Conductors always locates on the turning part. practically, these conductors get power from direct current power source. It uses metallic brushes (which rotate along with the rotor) to transfer the current to the coil. Though these motors are quite efficient but they require periodic maintenance of brushes.
Electrical Specification:
| Test items | Technical requirement | ||||
| 标准 | Min | Max | Unit | ||
| Gearbox width | φ28 | / | / | mm | |
| Total length | 76.5±1 | 75.50 | 77.50 | mm | |
| Motor outer diameter | φ29.4Max | / | 29.40 | mm | |
| Motor length | φ22±0.1 | 21.90 | 22.10 | mm | |
| Thread pitch | 2 | / | / | mm | |
| Boss height | M3 | / | / | / | |
| Mechanical behavior | No-load current | ≤0.12 | / | 0.12 | A |
| No-load speed | 167±15%rpm | 166.85 | 167.15 | RPM | |
| Turn around | Operates facing the front end of the shaft | CCW | |||
| Sound | Nothing unusual | ||||
Technical requirements:

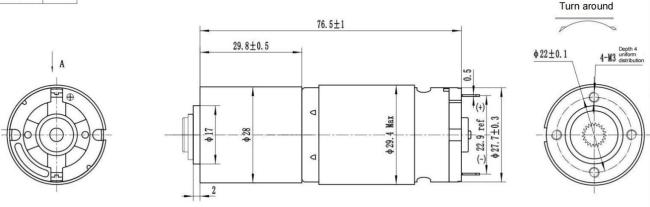

Mechanical Dimension
