42mm Nema 17 Brushless DC Motor 3.5A 106W 8Pole 48V 3Phase 0.22Nm 4600RPM
42mm Nema 17 Brushless DC Motor 3.5A 106W 8Pole 48V 3Phase 0.22Nm 4600RPM
Hetai 3 phase Brushless DC motors have the following advantages:
Our motors have been processed with precision technology and repeatedly tested, and their service life is longer than that of ordinary motors.And our Brushless DC Motors have better performance with low maintenance.
The series of Bruhshless DC Motors has a wide range of speed and diameter from 22mm to 110mm with a hall sensor.
Encoder, brake or gearbox can be applied in our Brushless DC Motor to satisfy the customers' needs.
Electrical Specification Of Brushless DC Motor
| Specification | Unit | 42BLFX01 | 42BLFX02 |
| Number Of Phases | Phase | 3 | 3 |
| Number Of Poles | Poles | 8 | 8 |
| Rated Voltage | VDC | 48 | 48 |
| Rated Speed | Rpm | 4400 | 4600 |
| Rated Current | A | 2.0 | 3.5 |
| Rated Torque | N.m | 0.13 | 0.22 |
| Rated Power | W | 60 | 106 |
| Peak Torque | mN.m | 0.39 | 0.66 |
| Peak Current | Amps | 6.0 | 10.5 |
| Torque Constant | N.m/A | 0.064 | 0.063 |
| Back EMF constant | V/kRPM | 6.7 | 7.1 |
| Body Length | mm | 59.2 | 84.2 |
| Weight | Kg | 0.39 | 0.59 |
You can download our 42BLFX Brushless DC Motor product brochure:42BLFX.pdf
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALLB | GREEN | |
| HALLC | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL3265 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE | |

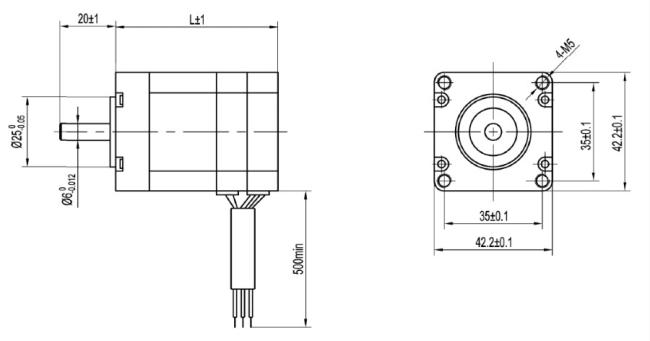

Mechanical Dimension Of Brushless DC Motor
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
