Nema 14 35mm Hybrid Stepper Motor Low Noise 1.8 Step Angle 4 Leads 1A
Nema 14 35mm Hybrid Stepper Motor Low Noise 1.8 Step Angle 4 Leads 1A
The combination of two motors like a permanent magnet and variable reluctance is known as a hybrid motor. The working principle of a hybrid motor is, the rotor in this motor is magnetized axially similar to a permanent magnet stepper motor, whereas the stator is energized electromagnetically similar to a variable reluctance stepper motor. So it is an actuator that changes electrical pulses to angular displacement.
As compared with other types, Hybrid Stepper motor provides high torque including a less step angle and it has good dynamic property. Day by day the development in different fields like computer technology, semiconductor, and permanent magnet materials is increased. Similarly, the usage of stepper motors is also increased in different fields like robotics, industrial automation, medical, etc.
Hybrid stepper motors are available in different types namely basic, encoder, IP65, brake, integrated type including drive & controller, brake, and geared.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
| 35BYGX001A | 1.8 | 4 | 10.4 | 0.4 | 26 | 17 | 500 | 23 | 0.12 |
| 35BYGX200A | 1.8 | 4 | 4.2 | 1 | 4.2 | 5.5 | 1250 | 29 | 0.12 |
| 35BYGX201A | 1.8 | 4 | 1.45 | 0.5 | 2.9 | 2.6 | 500 | 29 | 0.13 |
| 35BYGX401A | 1.8 | 4 | 3.20 | 1 | 3.2 | 3.8 | 1400 | 34 | 0.16 |
You can download our 35BYGX Hybrid Stepper Motor product brochure:35BYGX.pdf

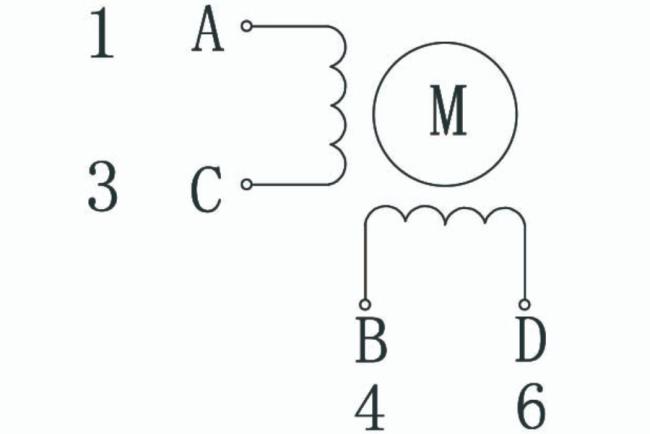

Wiring Diagram

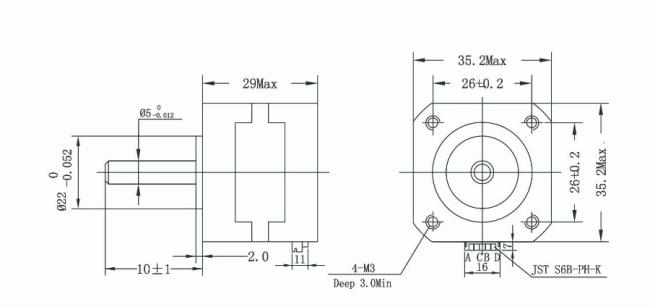

Mechanical Dimension Of Hybrid Stepper Motor
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Factory Scale Of Hetai
Stator Winding Machine
Certification Of Hybrid Stepper Motor
