Low Noise Nema 23 57mm Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 4.2A
Low Noise Nema 23 57mm Hybrid Stepper Motor 1.8 Step Angle 4 Lead Wire 9V 4.2A
A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can be commanded to move and hold at one of these steps without any position sensor for feedback.A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors.
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time.
Electrical Specification Of Hybrid Stepper Motor
|
You can download our 57HN Hybrid Stepper Motor product brochure:57HN.pdf

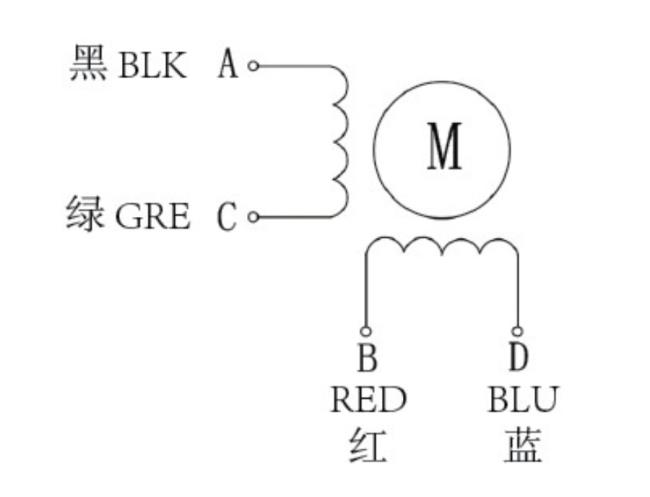

Wiring Diagram

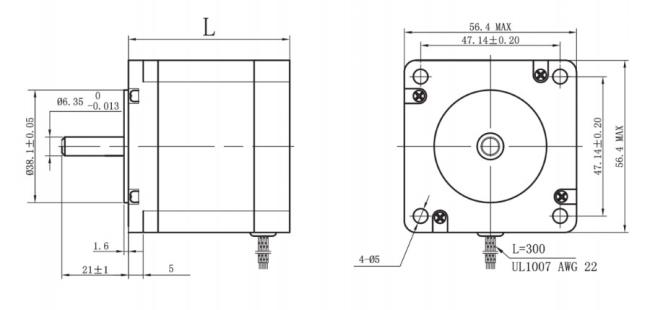

Mechanical Dimension Of Hybrid Stepper Motor
Manufacture Flow Of Hetai
Materials Of HeTai
Hetai purchases high-quality raw materials, regardless of cost, only to produce high-quality and high-performance products.
Stator Winding Machine

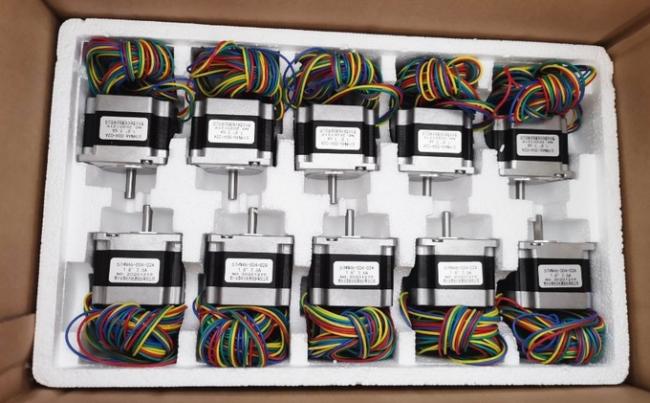

Packing&Delivery
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
