Nema 34 85mm Hybrid Stepper Motor 1.2 Step Angle 3 Lead Wire 21V 7A

Price Negotiable

Price: USD

MOQ: 50

Delivery Time: 28-31 DAYS

Brand: HeTai

Product Description

Nema 34 85mm Hybrid Stepper Motor High quality assurance 1.2 Step Angle 3 Lead Wire 21V 7A

The features of the hybrid stepper motor mainly include

Exact controlling of position

The motor includes an Electromagnetic Brake

Controlling is simple using pulse signals

At the stopped location, this motor holds itself

High torque can be generated through compact size

The advantages of Hybrid Stepper Motor are as follows:-

The torque of this motor is high

It gives detent torque including de-energized windings

The step length is less

The efficiency of this motor is high at less speed.

The stepping rate is low.

Electrical Specification Of Hybrid Stepper Motor

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (N.M)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
85BYGH350A-001	1.2	3	3.1	3.1	1.0	4.1	2.0	68	1.7
85BYGH350A-002	1.2	3	7.4	1.75	4.25	12.3	2.3	68	1.7
85BYGH350B-001-17	1.2	3	3.1	5.8	0.53	2.5	3.2	97	2.9
85BYGH350B-002-02	1.2	3	10.8	2.0	5.4	23.0	4.5	97	2.9
85BYGH350C-001-02	1.2	3	3.7	7.0	0.53	2.5	5.6	127	4.0
85BYGH350C-003	1.2	3	21.0	3.5	6.0	25.0	6.8	127	4.0

You can download our 85BYGH350 Hybrid Stepper Motor product brochure:85BYGH350.pdf

Wiring Diagram

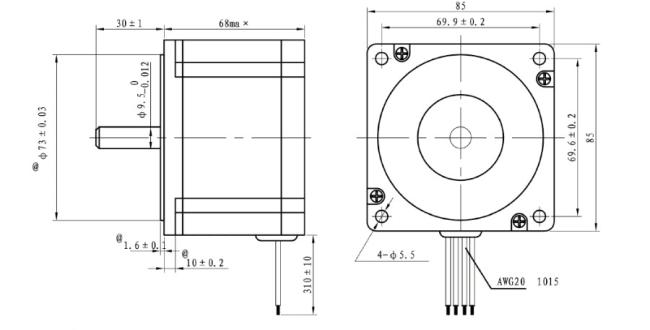

Mechanical Dimension Of Hybrid Stepper Motor

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
