Nema 42 110mm High Torque Hybrid Stepper Motor 3 Lead Wire 20V 6.9A
Factory Driect Sale Nema 42 110mm High Torque Hybrid Stepper Motor 3 Lead Wire 20V 6.9A
The Hybrid Stepper Motor applications are as follows
Hybrid Stepper motors are applicable in the production of automated devices, gauges & machines used as cutting, labeling, packaging, filling, etc.
These are used in lane diverters, elevators, and conveyor belts.
These are used in security devices like CC cameras
These are applicable for consumer electronics like printing machines, scanners, digital cameras, etc.
Hybrid Stepping motors are used in the medical field for photography of digital dental, liquid pumps, respirators, the machinery of blood analysis machinery, etc
Hybrid Stepping motors are very popular because it provides good performance in terms of holding torque, speed, and step resolution as compared with the permanent magnet rotor.
Electrical Specification Of Hybrid Stepper Motor
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (N.M) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
| 110BYGH350A-001 | 1.2 | 3 | 6.0 | 4.3 | 1.4 | 9.2 | 10 | 120 | 6.5 |
| 110BYGH350B-001 | 1.2 | 3 | 10.2 | 6.0 | 1.7 | 12.0 | 15 | 148 | 7.4 |
| 110BYGH350C-001 | 1.2 | 3 | 13.4 | 6.4 | 2.1 | 14.8 | 19 | 182 | 9.8 |
| 110BYGH350D-001 | 1.2 | 3 | 20.0 | 6.9 | 2.9 | 22.0 | 20 | 216 | 11.7 |
You can download our 110BYGH350 Hybrid Stepper Motor product brochure:110BYGH350.pdf

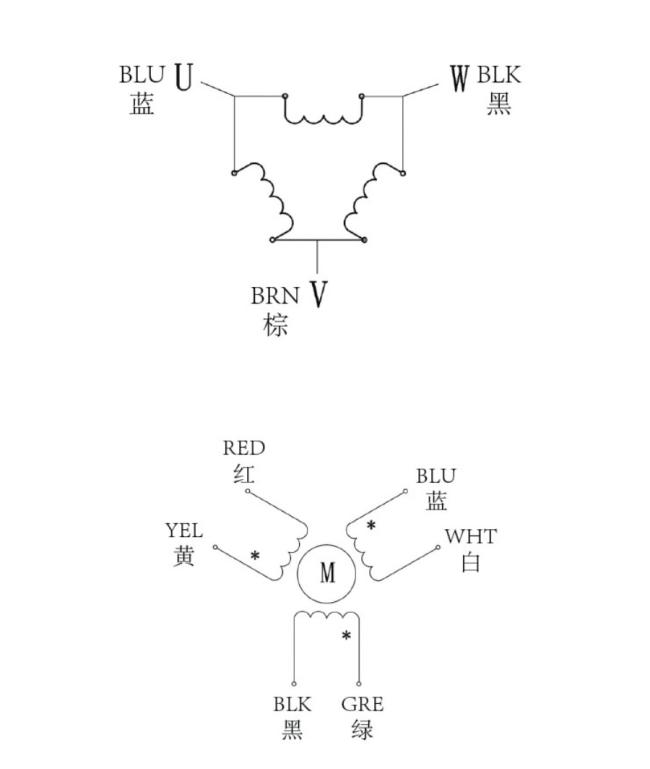

Wiring Diagram

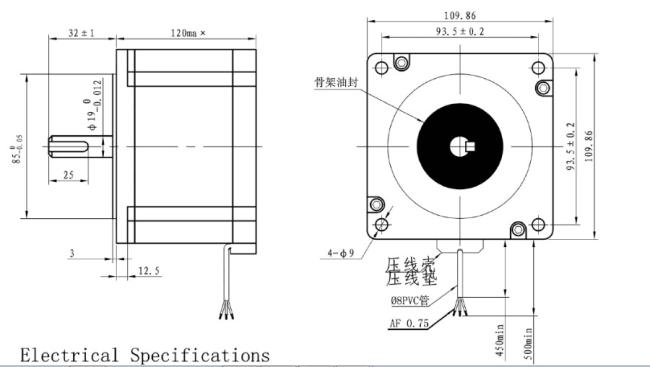

Mechanical Dimension Of Hybrid Stepper Motor
Market Range of Hetai
Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
Product Range Of Hetai
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
