Diesel Particulate Filter Dpf Service Regeneration

Price Negotiable

Price: Negotiable

MOQ: 50 PCS

Delivery Time: 30-60 days after receiving the deposit

Brand: WEIFU

Product Description

DPF (Diesel Particulate Filter)

Advantages of WFEC DPF Technology:

High filtration efficiency & low back pressure
Different materials, different structure, different coating processes
Soot loading model research

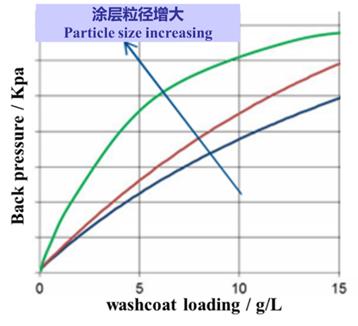

Washcoat distribution design & preliminary development of coating process
Washcoat materials design

DPF Substrate Parameters:

Material	SiC-1	SiC-2	Cordierite-1	Cordierite -2
Porosity	41%	42%	~52%	~50%
Average pore diameter	11um	11um	~13um	~18 µm
CPSI/wall thickness	300/12	350/11	300/9	300/9

DPF (Diesel Particulate Filter) Development:

To meet China Stage VI / Euro 6 and above emission regulations, WFEC has developed the catalysts and coating process technology for DPFs. The catalyst coated in the pores of the filter wall can improve passive regeneration to extend regeneration intervals and cut the fuel cost, as well as the reduction of HC and CO. The CDPFs with lower back pressure and better catalytic activity can be applied to various diesel vehicles.

Specification	Diameter (mm)	Length (mm)	Cell Density (CPSI)	Emission Standard
Ø143.8*152.4	143.8	152.4	200/300	Euro 5, Euro 6
Ø143.8*177.8	143.8	177.8	200/300	Euro 5, Euro 6
Ø143.8*200	143.8	200	200/300	Euro 5, Euro 6
Ø143.8*203.2	143.8	203.2	200/300	Euro 5, Euro 6
Ø152.4*304.8	152.4	304.8	200/300	Euro 5, Euro 6
Ø160*100	160	100	200/300	Euro 5, Euro 6
Ø165*130	165	130	200/300	Euro 5, Euro 6
Ø170.2*203.2	170.2	203.2	200/300	Euro 5, Euro 6
Ø172*152.4	172	152.4	200/300	Euro 5, Euro 6
Ø190.5*203.2	190.5	203.2	200/300	Euro 5, Euro 6
Ø190.5*304.8	190.5	304.8	200/300	Euro 5, Euro 6
Ø215.9*304.8	215.9	304.8	200/300	Euro 5, Euro 6
Ø228*228	228	228	200/300	Euro 5, Euro 6
Ø228*304.8	228	304.8	200/300	Euro 5, Euro 6
Ø230*152.4	230	152.4	200/300	Euro 5, Euro 6
Ø240*304.8	240	304.8	200/300	Euro 5, Euro 6
Ø241.3*304.8	241.3	304.8	200/300	Euro 5, Euro 6
Ø266.7*152.4	266.7	152.4	200/300	Euro 5, Euro 6
Ø266.7*215	266.7	215	200/300	Euro 5, Euro 6
Remark:	Other sizes can be customized according to customer requirements.
