32 Inch Infrared Touch Frame
China Touch 32 inch infrared touch frame , ir touch panel , ir touch frame for Kiosk
| Product Name: | 32 inch infrared touch frame | Bezel Material: | Aluminium alloy |
| Total Size: | 740.4x434.9mm | Display Size: | 699x393.5mm |
| Touch Resolution: | 32767x32767 | Type: | GT-IR-TB32 |
| Response Time: | Less than 10ms | Touch Accuracy: | +/-2mm(Over 95% area) |
| Touch Input Objects: | Fingers,opague objects | Touch Durability: | Unlimited |
| Size for touch input objects: | 7mm | Interface: | USB2.0 full speed |
| Electrical Specification | |||
| Scan Rate: | More than 100Hz/s | Communication: | USB2.0 |
| Transmission Rate: | 480Mbps | Power Supply Mode: | USB 5V DC |
| Supply Voltage: | From 4.75 to 5.25V | Operating Voltage: | Equal to or less than 200MA |
| Environmental Specification | |||
| Working /StockTemperature: | -15ºC~55ºC ,-40ºC~75ºC | Working Hudimity: | 10%~90%RH,no condense |
| Stock Humidity: | 10%~90%RH,no condense | Anti Light Ability: | <80000Lux |
| Static Electricity: | Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test) | ||
| Software Compatibility | |||
| Firmware Upgrade: | Available | OS Compatibility: | Win7/Win8/Win10,Android/Linux/Mac |
| API(software interface): | able to provide motive links datasheet,DIY API interface is available | ||
| Reliability And Durability Data Sheet | |||
| High Temperature Stock: | 100ºC for 20 hours,normal temperature for 2 hours | ||
| Low Temperature Stock: | -40ºC for 20 hours,normal temperature for 2 hours | ||
| USB Plug In And Out Test: | More than 2000 times | ||
| High/Low Circle Working: | 80ºC for 48 hours,-10ºC for 12 hours | ||
| High Humidity Working: | 80ºC for 20 hours with 85% | ||
We can provide USB controller and HDMI/VGA driver board.If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.
Anhui film company is a research and development, production and sales company, the company's main products: tempered glass panel, intelligent touch glass panel, intelligent door lock tempered glass, touch switch glass panel, door lock tempered glass panel, window tempered glass panel, 86 switch glass panel, machine tempered glass panel, glass lens Silk screen glass and other products professional production and processing company, has a complete, scientific quality management system.
Anhui film company is recognized by the industry for its integrity, strength and product quality. Welcome friends from all walks of life to visit, guide and business negotiation.
Products field:
Awards and honors:
Patent certificate:

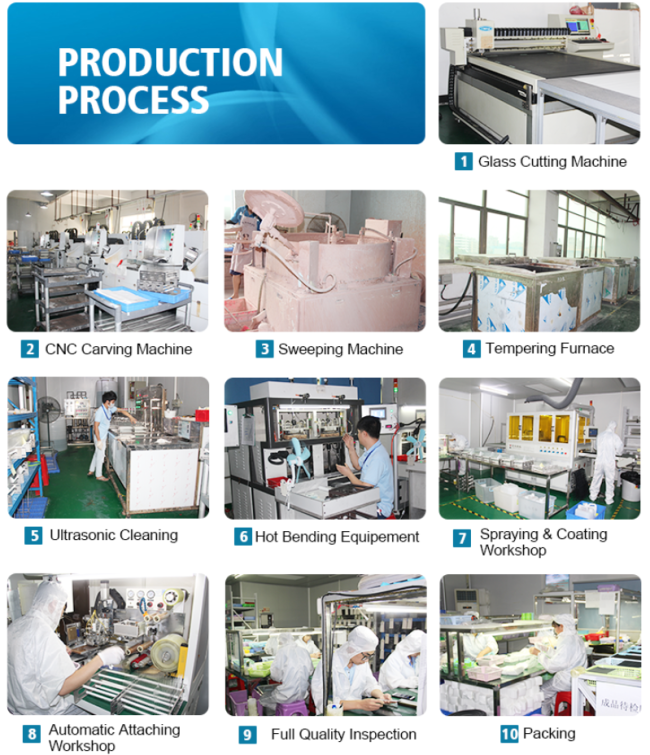

Production Line show:
Inspection Lab show:
Lead time:
- For goods in stock, 2-3 days after PO.
- For customized samples, 1weeks after the confirmation of price and drawing.
- For mass production, 3-4 weeks after PO.
Shipment service:
FedEx, SF etc.
Packing Method show:
Packaging process
Step 1. Anti-static packaging products or Blister tray packaging.
Step 2. Put the foam into the carton and then put the packaged product
Step 3. Wrap all cartons with wooden stand or as per customer's requirement.
Q&A
Q. Are you a trading company or manufacturer?
A: We are a manufacturer.
Q: What do I need to offer to get a quote ?
A: Please offer 2D or 3D drawings (material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or sample.Then we will quote the best price within 24hours.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample.After price confirmation, you can require for samples to check our quality.
Q. What’s your lead time?
A: The lead time for samples is 2weeks and mass production is 3-4weeks.
Q. What kind of products can you provide?
A: We can provide cover glass, touch panel, electromagnetism screen, integrated touch machine, touch module, smart window, harden film, conductive film ect..
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the materials are in stock. or it is 10-15 working days if materials are not in stock, it is according to quantity.
Anhui film company always adheres to the business philosophy of "honesty and pragmatism, pioneering and innovation". Regards customers as important and service them with the lowest cost and high quality. One stop service of inner cover glass, touch sensor, touch panel display and touch machine assembly is our advantage. We have rich experience in glass, touch screen and PI film.
We sincerely look forward to cooperating with you.
