2 Layer Flex Pcb Manufacturer Double Sided Copper Clad PCB Board Sheet
CNC Routing Rigid Flexible PCB PCBA Fabrication Stencil Making
OEM/ODM/EMS Services we offer:
• SMT & PTH & BGA PCBA, PCB Board assembly
• PCBA and enclosure design
• Components sourcing and purchasing
• Double Sided PCB Manufacturing Process
• Plastic injection molding
• Metal sheet stamping
• Final assembly
• Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
• Custom clearance for material importing and product exporting
• PCBA copy
Our service:
1.Professional engineer team --help you to check design and do engineering before production.
2.After-sales service--every problem you have will get our professional advice and solution.
3.Constant follow up-- make us have the fast reaction of your requirement.
4.Perfect FPC production industry--provide high quality and competitive price FPC.
5.Inspection agency--has the most authoritative UL and ISO inspection agencies in the world.
Flex-rigid PCBs are fabricated through orderly and selective layer stackup of rigid and flexible PCBs with plated through holes responsible for connection between layers.
Rigid Flexible PCB Capability
Rigid flex printed circuit board (PCB) is a hybrid circuit board design that integrates elements from both hardboard and flexible circuits. Rigid flex PCBs are rigid at some points on the board and flexible at others.
The flexible layers are buried internally and completely penetrate the rigid sections of the PCB.
When the board circuits are very complex and single board can not reach functions needs,we need choose double fpc or multilayers fpc .
The difference bewtween single layer fpc and mutilayer fpc are add via design series so that connect all layers clad copper.
More broadly, rigid flex PCBs have the following advantages:
Survive high levels of shock and vibration
Survive hundreds of thousands of flex cycles
Reduce package weight
Increase circuit density
Decrease necessary assembly operations

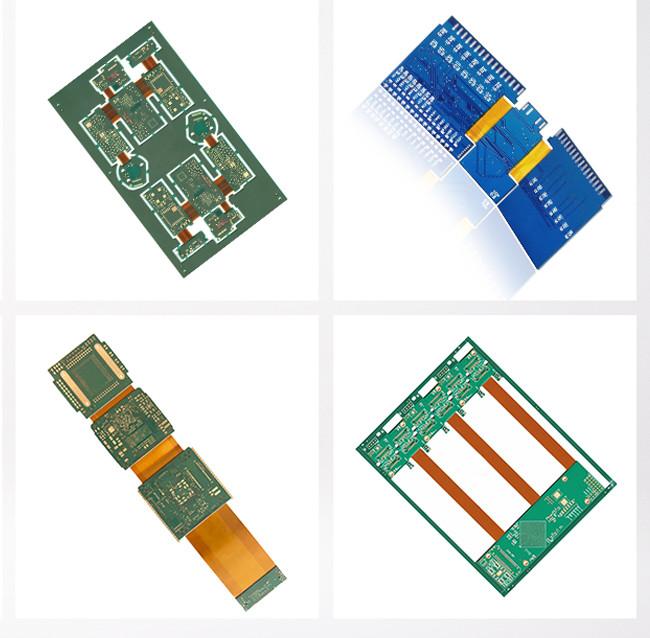

For Rigid Flexible PCB that we made for customers:
Our company has passed ISO9001 quality system, ISO14001 environmental management system, UL certification, IATF 16949: 2016 automotive quality management body certification. And applied for 11 patents in smart wear, smart home, IOT, and Wutong, and gradually applied to become a high-tech enterprise in Shenzhen, a national high-tech enterprise, and established a complete set of business management mechanisms that are compatible with the development of the market economy, and imported information. Management system application.
Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.
Shenzhen Yideyi Technology Co., Ltd was established in 2008. We mainly offer high-precision single-side, double-side, multi-layer printed circuit boards, LED aluminium printed circuit board, customers components procurement and PCB assembly (SMT) business.

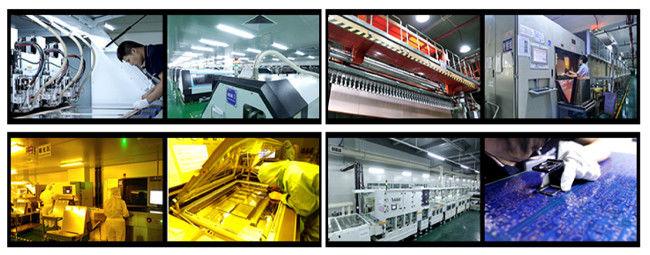

Now the production capacity of our factory has reached 600,000 square meters annually. And our products apply far and wide in many fields such as communication, computer, mobile phone, eletronic equipment and electrical appliance.
FAQ:
Q1. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.
Q2. What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)
Q3. What’s the MOQ?
We are able to handle Small as well as large volume production with flexibility.
Q4. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q5. What is the main application of your PCBA service?
Industrial commander, and other industrial devices.
Medical equipments main board.
Security electronics
Communicative devices
New energy electronics
