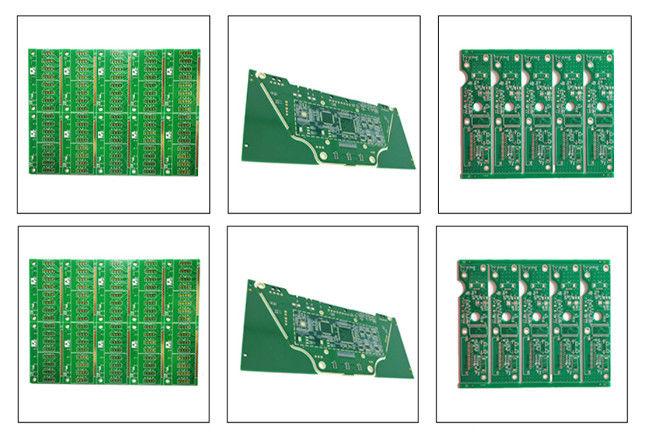

Metal Core Double Sided Aluminum Pcb Assembly Pcb China Prototype
Printed Circuit Board Assembly Services Double Sided PCB Assembly
A complete solution including:
mechanic assembly, software installation and supplied in packaging material.
PCB capability:
| Item | CAPABILITIES |
| Lead Time | 24 hours expedited service can be offered. 3- 4 days normally for PCBA prototype orders. We will give you accurate lead time when we quote for you. |
| PCB Spec. Requirements | Max. board size: 500mm X 400mm |
| Board Type: Rigid PCBs, Flexible PCB, metal core PCBs | |
| Surface finish: lead/lead-free HASL, immersion gold etc | |
| Assembly Types | Surface mount |
| Through-hole | |
| Mixed technology (SMT & Thru-hole) | |
| Component Sourcing | Full turnkey (All components sourced by PCBGOGO) |
| Partial turnkey | |
| Kitted/Consigned | |
| BGA 0.25mm pitch with X-ray testing | |
| Component Types | Passive components |
| Hard metric connectors | |
| Cable & Wire | |
| SMT Parts Presentation | Cut tape/Partial reel/Tube/Tray/Laser-cut stainless steel |
| Cable Assembly | We supply custom cables, cable assemblies, wiring looms/harnesses and power leads for various industries including automotive, security, mining, medical and entertainment. |
| Stencils | Stencil with or without frame (offered free by PCBGOGO) |
| Quality Inspection | Visual inspection; AOI checking; BGA placement – X-RAY checking |
| After-sale Service |
Repair and rework service will be offered if it is defective or damaged on delivery process.
|
What are the two sides of a PCB called?
The primary side could also be called the top side, and corresponds more exactly to the component side when doing a through-hole board with all components on the same side. the secondary side could also be called the bottom side, or more exactly the solder side, with a through-hole board

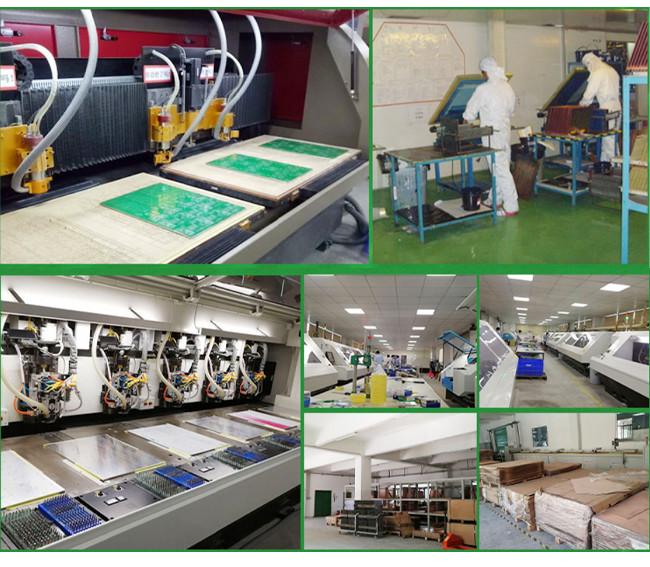

Shenzhen Yideyi Technology Co., Ltd has 10 years of PCBA manufacturing experience, and the factory has been on-site audit by mitsubishi headquarters in Japan. Is a company to provide customers with advanced, low-cost, in line with the eu environmental directives electronics manufacturing services provider
FAQ:
Q1. How can we ensure our information should not let third party to see our design?
We are willing to sign NDA effect by customer side local law and promising to keep customers date in high confidential level in all projects.
Q2. What service do you have?
We provide turnkey solution including RD, PCB fabrication, SMT, final assembly,testing and other value-added service.
Q3. Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:Surface finish:
Solder mask color:
Silkscreen color:
Q4. MOQ?
We are able to handle Small as well as large volume production with flexibility.
Q5. With payment terms do we accept?
For sample order or small batch, we suggest you to use Pay-pal and Western Union.For mass production batch, we suggest you to use T/T.
Q6. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
Q7. What are the main products of your PCB/PCBA service?
Automotive, medical, Industrial control, Internet of Things, Smart home, military, Aerospace.
