Aoi Quick Turn Pcb Fabrication
Turnkey PCB Assembly Electronic Components Material Purchasing
Our service includes:
* Electronic components material purchasing
* Bare PCB fabrication
* PCB Assembly Service. (SMT, DIP)
* FULL Test: AOI, X-Ray, In-Circuit Test (ICT), Functional Test (FCT)
* Cable, and Wire-harness assembly
* Conformal coating service
* Prototyping and mass production...
* PCB layout, PCBA design according to your idea
* Plastic injection molding, Metal stamping
* Rubber&Silicone parts
* Packages customized
* PCB layout, PCBA design according to your idea
PCB Manufacture Capacity
| One-stop PCBA | PCB design+PCB+components sourcing+assembly+test+package |
| Assembly details | SMT and Thru-hole |
| Lead Time | Prototype: 7-15 work days. Batch order 20~25 work days usually |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine Pitch to 0.8mils | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCB assembly process |
Drilling---Exposure---Plating---Etaching & Stripping---Punching---Electrical Testing---SMT---Wave Soldering---AOI test---Assembling---ICT---Function Testing---Temperature & Humidity&Aging ect. Testing |
You can be easy working with YDY,why?

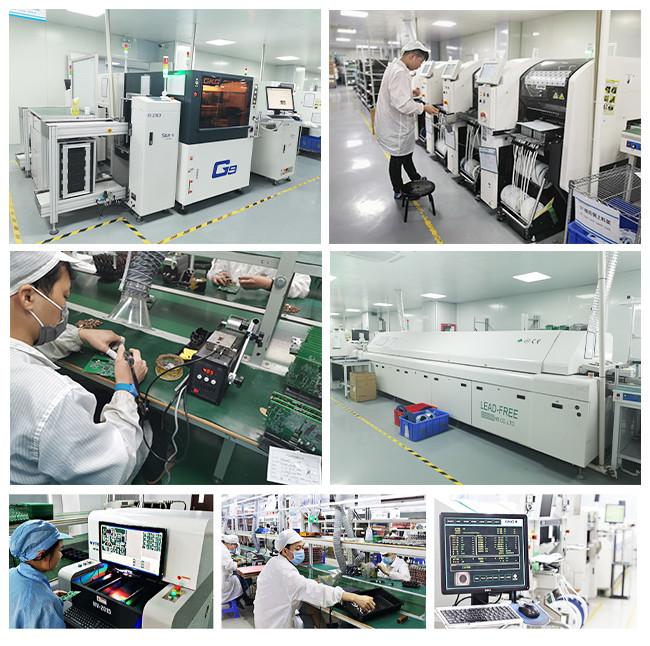

Production
Advance SMT/DIP equipments.Our chip placement precision can reach ±0.03mm on integrated circuit parts, we could make SO, SOP, SOJ, TSOP, TSSOP, QFP, GA and U-BGA
Assorted shells' production and complete products assembly,Providing One-station service.
Packaging
According to different type or shape of PCBAs, we use different and targeted packing methods.
Focusing on every detail, Ensuring the goods can be delivered to customer perfectly.
Team
Our team is full of energy and responsbilityand each colleague with different work background and experience.
Professional sales engineers and technicians, communication is easy and effective with us.
Shenzhen Yideyi Technology Co. LTD poviding One station ODM/OEM service for electronics customized PCB circuit board assembly product
FAQ:
1, Do you offer quick turn PCB Assembly ?
Yes, we offer 24 hours quick turn PCB Assembled Solution without sacrifice the quality of the PCB Board.
2, Do you offer X-Ray capability ?
Yes, we inspect the boards using X-ray and therefore offer total reliability.
3, Do you offer conformal coating service ?
Yes, conformal coating is a part of our value-added services.
4, Do you offer testing service ?
Yes, we offer robust functional testing that adds to the product reliability.
5, Do you offer IPC 610 or J-STD Quality inspections ?
Absolutely, we offer these inspections as per client requirements.
