Quick Turnkey PCB Assembly Soldering SMT DIP Pcba
SMT DIP PCB Assembly Turnkey PCB Assembly One Stop Solution Mixed Assembly
Product & Service:
- PCB Assembly Service
- Quick turn PCB Fabrication
- SMD Stencils
- Prototype PCBs
- PCB Prototyping
- Engineering service
- Conformal coating service
- Full testing
- PCB layout, PCBA design
- PCBA reverse engineering
- 3D printing
- Components material purchasing
PCB Manufacture Capacity
| One-stop PCBA | PCB design+PCB+components sourcing+assembly+test+package |
| Assembly details | SMT and Thru-hole |
| Lead Time | Prototype: 7-15 work days. Batch order 20~25 work days usually |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, Functional test |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine Pitch to 0.8mils | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape,Tube,Reels,Loose Parts |

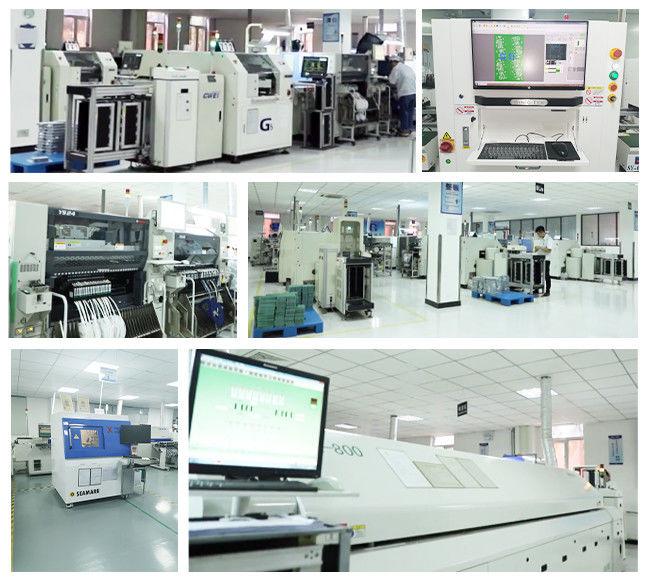

| PCB assembly process |
Drilling---Exposure---Plating---Etaching & Stripping---Punching---Electrical Testing---SMT---Wave Soldering---AOI test---Assembling---ICT---Function Testing---Temperature & Humidity&Aging ect. Testing |
In 2019, YDY Technology marked our 20th anniversary of providing high quality PCB and PCBA service to the electronics industry.
FAQ:
1, Do you offer quick turn PCB Assembly ?
Yes, we offer 24 hours quick turn PCB Assembled Solution without sacrifice the quality of the PCB Board.
2, Do you offer X-Ray capability ?
Yes, we inspect the boards using X-ray and therefore offer total reliability.
3, Do you offer conformal coating service ?
Yes, conformal coating is a part of our value-added services.
4, Do you offer testing service ?
Yes, we offer robust functional testing that adds to the product reliability.
5, Do you offer IPC 610 or J-STD Quality inspections ?
Absolutely, we offer these inspections as per client requirements.
6, What is the PCB Assembly cost ?
The cost is based on a number of factors including the types of PCB parts, order quantity and more. Once you reach out to us with your bespoke requirements, we will revert with a custom quote.
7, What is your standard turnatound time for PCB Assembly ?
Our standard turnaround time for PCB Assembly is 3 weeks.
