TES2 R404a Freon Thermostatic Expansion Valve R507 Refrigeration Service Valves
Price:
negotiate
MOQ:
20 pcs
Delivery Time:
4-6 weeks
Brand:
Original
Product Description

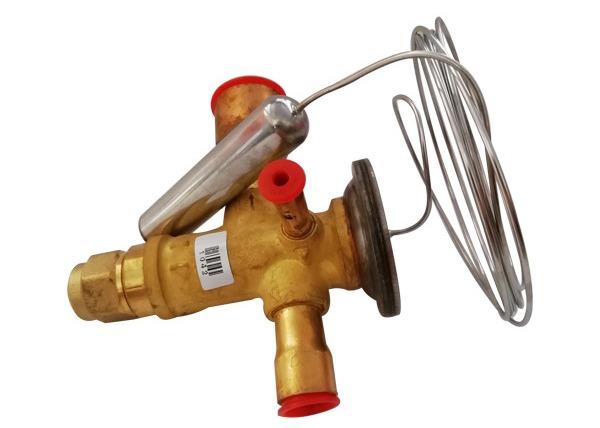

Thermostatic Expansion Valves T2 / TE2 series TES2 R404A/R507
General information
Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators.Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
Features
* Large temperature range, equally applicable to freezing, refrigeration and air conditioning applications.
* Interchangeable orifice assembly - easy storage,easy capacity matching,better service.
* Rated capacities from 0.96 to 20.5 kW (0.27 to 5.82 TR) for R407C.
* Can be supplied with MOP (Max. Operating Pressure); Protects the compressor motor against excessive evaporating pressure during normal operation.
* Stainless steel bulb and Danfoss patented bulb strap; Fast and easy to install; Good temperature transfer from pipe to bulb
![]()
* Valves for special temperature ranges can be supplied.
* Design protected.
Technical leaflet
-Ordering. Components with flare × flare connection,thermostatic element with sensor band. Without orifice, filter cone and nuts.
| Refrigerant | Valve type |
Pressure equalization1 |
Capillary tube |
Connection Inlet × outlet |
Code no. | ||||||
| Range N –40 to +10°C |
Range NM –40 to –5°C |
Range NL –40 to –15°C |
Range B –60 to –25°C |
||||||||
| mm | in. × in. | mm × mm | Without MOP | With MOP | With MOP | With MOP | Without MOP | With MOP | |||
| R22 | TX2 | Int. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 | 068Z3207 | 068Z3228 |
| TEX2 | Ext. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3208 | 068Z3211 | 068Z3225 | 068Z3227 | 068Z3210 | 068Z3229 | |
| R407C | TZ2 | Int. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3496 | 068Z3516 | ||||
| TEZ2 | Ext. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3501 | 068Z3517 | |||||
| R134a | TN2 | Int. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 | ||
| TEN2 | Ext. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 | |||
| R404A/ R507 |
TS2 | Int. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 | 068Z3401 | 068Z3410 |
| TES2 | Ext. | 1.5 | 3/8 × 1/2 | 10 × 12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 | 068Z3404 | 068Z3411 | |
-Ordering. Components with flare × solder connection,Thermostatic element with sensor band. Without orifice, filter cone and nuts.
| Refrigerant | Valve type |
Pressure equalization1 |
Capillary tube |
Connection | Code no. | ||||||
| Inlet Flare |
Outlet ODF solder |
Range N –40 to +10°C |
Range NL –40 to –15°C |
Range B –60 to –25°C |
|||||||
| mm | in. / mm | mm × mm | Without MOP | With MOP | Mop –10°C | Without MOP | MOP –20°C | ||||
| R22 | TX2 | Int. | 1.5 | 3/8 | 1/2 | 068Z3281 | 068Z3287 | 068Z3366 | 068Z3357 | 068Z3319 | |
| TX2 | Int. | 1.5 | 10 | 12 | 068Z3302 | 068Z3308 | 068Z3361 | 068Z3276 | |||
| TEX2 | Ext. | 1.5 | 3/8 | 1/2 | 068Z3284 | 068Z3290 | 068Z3367 | 068Z3359 | 068Z3220 | ||
| TEX2 | Ext. | 1.5 | 10 | 068Z3305 | 068Z3311 | 068Z3363 | 068Z3277 | ||||
| R407C | TZ2 | Int. | 1.5 | 3/8 | 1/2 | 12 | 068Z3502 | 068Z3229 | |||
| TZ2 | Int. | 1.5 | 10 | 068Z3514 | |||||||
| TEZ2 | Ext. | 1.5 | 3/8 | 1/2 | 068Z3346 | 068Z3447 | |||||
| TEZ2 | Ext. | 1.5 | 10 | 12 | 068Z3503 | 068Z3515 | |||||
| R134a | TN2 | Int. | 1.5 | 3/8 | 1/2 | 068Z3383 | 068Z3387 | ||||
| TN2 | Int. | 1.5 | 10 | 068Z3384 | 068Z3388 | ||||||
| TEN2 | Ext. | 1.5 | 3/8 | 1/2 | 12 | 068Z3385 | 068Z3389 | ||||
| TEN2 | Ext. | 1.5 | 10 | 068Z3386 | 068Z3390 | ||||||
| R404A/ R507 |
TS2 | Int. | 1.5 | 3/8 | 1/2 | 12 | 068Z3414 | 068Z3516 | 068Z3429 | 068Z3418 | 068Z3420 |
| TS2 | Int. | 1.5 | 10 | 068Z3435 | 068Z3423 | 068Z3436 | 068Z3425 | 068Z3427 | |||
| TES2 | Ext. | 1.5 | 3/8 | 1/2 | 068Z3415 | 068Z3417 | 068Z3430 | 068Z3419 | 068Z3421 | ||
| TES2 | Ext. | 1.5 | 10 | 12 | 068Z3422 | 068Z3424 | 068Z3437 | 068Z3426 | 068Z3428 | ||
- Ordering Orifice
Range N: –40 to +10°C
| Orifice no. | Nominal capacity in tons (TR) | Nominal capacity in kW | Code no. | ||||||
| R22 | R407c | R134a | R404a/R507 | R22 | R407c | R134a | R404a/R507 | ||
| 0X | 0.25 | 0.27 | 0.19 | 0.18 | 0.9 | 0.96 | 0.68 | 0.65 | 068-2002 |
| 00 | 0.51 | 0.53 | 0.34 | 0.37 | 1.78 | 1.87 | 1.2 | 1.3 | 068-2003 |
| 0.1 | 0.99 | 1.04 | 0.59 | 0.75 | 3.48 | 3.67 | 2.08 | 2.64 | 068-2010 |
| 02 | 1.34 | 1.41 | 0.73 | 1.05 | 4.72 | 4.96 | 2.55 | 3.7 | 068-2015 |
| 03 | 2.27 | 2.4 | 1.22 | 1.79 | 8.01 | 8.45 | 4.3 | 6.29 | 068-2006 |
| 04 | 3.45 | 3.67 | 1.82 | 2.83 | 12.2 | 12.9 | 6.4 | 9.97 | 068-2007 |
| 05 | 4.76 | 4.86 | 2.4 | 3.71 | 16.8 | 17.1 | 8.43 | 13.1 | 068-2008 |
| 06 | 5.6 | 5.82 | 2.87 | 4.42 | 19.7 | 20.5 | 10.1 | 15.6 | 068-2009 |
