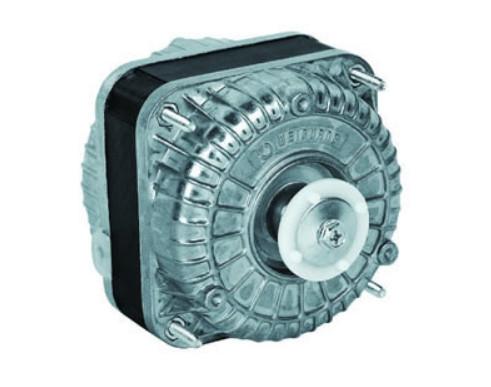

5W 10W 16W Shaded Pole Motors Weiguang YZF Refrigeration Fan Motors
Weiguang YZF Series 5W,10W,16W,25W,34W Shaded Pole Motors For Adiator, Evaporator And Refrigeration Systems
1. YWF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220-240V,50/60Hz or 110-120V,60Hz. They are widely usd in radiator, evporator and other refrigeration equipment.
2. The output power is from 5W to 34W, which is relative to the stack length.
3. The insulation class of motors is B, and the protection class of that is Ip42. On request Ip44 is available.
4. The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃+5℃ for outpower above 10W.
5. The applicable ambient temperature is from -30℃ to +50℃
6. Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearings.
7. The average service life of motors is over 20000 hours.
8. Most of shaded pole motors passed CE,VDE,UL and CCC approval.
| Model | Voltage (V) | Frequency (Hz) | Input W | Output W | Current A | Speed r/min | Fan blade mm | Bracket mm | Weight kg |
| YZF 5-13 | 220~240 | 50/60 | 33 | 5 | 0.25 | 1300 | φ200 | H72 | 0.8 |
| YZF 6-13 | 110~120 | 60 | 33 | 6 | 0.55 | 1550 | |||
| YZF 7-20 | 220~240 | 50/60 | 38 | 7 | 0.3 | 1300 | φ230 | H84 | 1.1 |
| YZF 10-20 | 220~240 | 50/60 | 40 | 10 | 0.35 | 1300 | φ230 | H84 | 1.1 |
| 110~120 | 60 | 55 | 10 | 0.8 | 1550 | ||||
| YZF 16-25 | 220~240 | 50/60 | 70 | 16 | 0.5 | 1300 | φ250 | H84 | 1.4 |
| YZF 18-25 | 110~120 | 60 | 70 | 18 | 1.01 | 1550 | |||
| YZF 18-30 | 220~240 | 50/60 | 73 | 18 | 0.5 | 1300 | φ250 | H84 | 1.5 |
| 110~120 | 60 | 75 | 18 | 1.1 | 1550 | ||||
| YZF 25-40 | 220~240 | 50/60 | 95 | 25 | 0.7 | 1300 | φ300 | H109-2 | 1.8 |
| 110~120 | 60 | 100 | 25 | 1.4 | 1450 | ||||
| YZF 34-45 | 220~240 | 50/60 | 120 | 34 | 0.85 | 1300 | φ300 | H109-3 | 2 |
| 110~120 | 60 | 110 | 34 | 1.5 | 1450 |
Should you have any question, feel free to contact.
