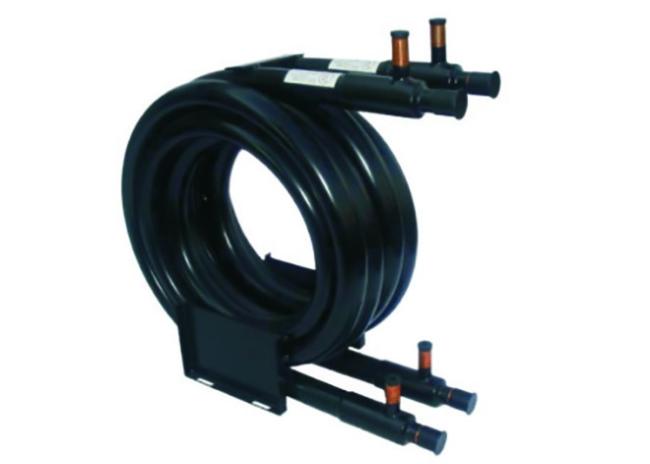

ET R410A R407C Refrigerant Coaxial Coils Heat Exchanger For Heat Pump

Coaxial Coils Heat Exchanger For Heat Pump System,Water / Ground Source Heat Pump For The Vesseland Heat Exchanger

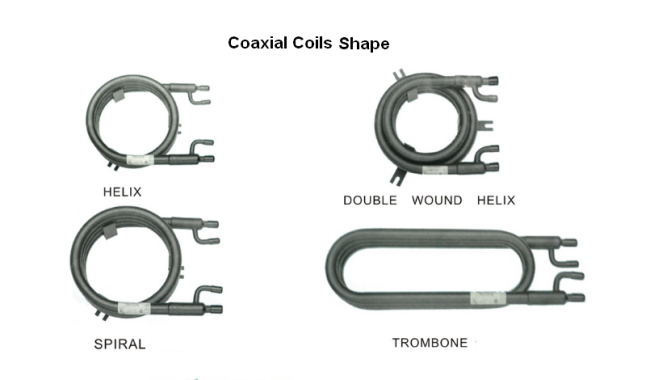

Coaxial Coils are specially designed for heat pump systems for maximum heat transfer with incorporation of the most advanced and innovative convoluted multi-head inner tube.

Coaxial Coils are designed for use as water cooled condensers, water chiller and in water source heat pumps.

Coaxial Coils are designed for R22,R12,R410a and R407c refrigerant. The units are rated at standard ARI-conditions standard 450-79 using R22.

Features

1. The size is bigger than plate heat exchanger, while smaller than tube in tube oil.

2. The water flow resistance is low, and the convoluted multi-head innter tube enhances turbulence, more efficient.

3. It can be used as water-cooled condenser, can change the inner tube with fin tube, the cost will be lower.

4. Not easy to freeze, the water flow resistance is low.

Specifications

Should you have any question, feel free to contact.
