120V 240V SKPS Pressure Controls 0.15Mpa - 3.45Mpa Well Pressure Switch
SKPS Pressure Controls, Pressure Switch For Refrigeration System,Condensing Unit,Refrigeration Unit,Cooling Equipments
Description:

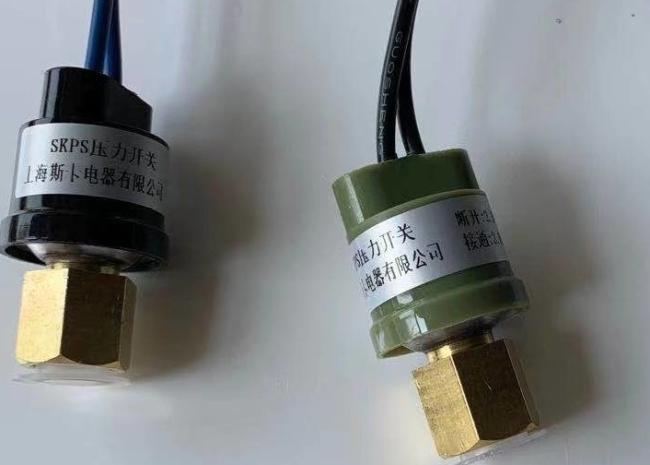

SKPS series pressure switches
SKPS series pressure controls are a kind of advanced subminature pressure switches, making the control circuit closed or not according to the pressure variation of the controlled medium, which are widely used by all kinds of air conditions, refrigeration set and other industrial apparatus that need to adjust the pressure of the controlled medium to protect the pressure system automatically.
Technical parameter:
| Pressure switch over value | 0.15Mpa - 3.45 Mpa , can customized |
| Adaptable ambient temp | -35℃ - 120 ℃ |
| Electric rated value | 120/240V etc, can customized |
| Endurance | 100000 times |
| Compression resistance | contact to contact 750Vrms, contact to crust 1500Vrms |

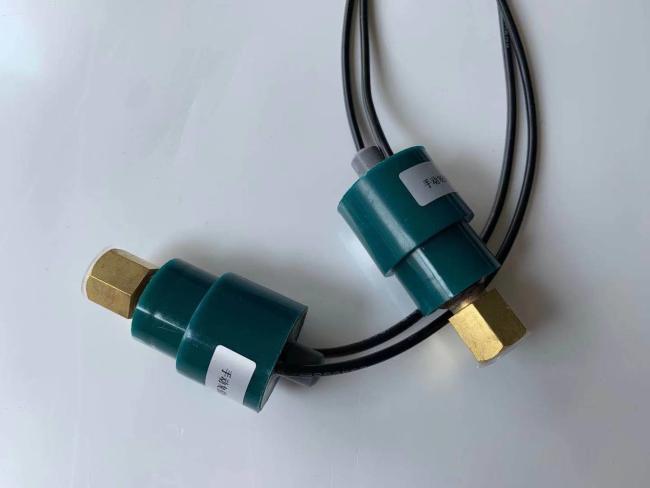

SKPS (M) series manual reset switches
There is nuance between the principle of SKPS (M) series manual reset switches and the principle of SKPS series pressure switches. When the pressure of controlled medium depresses, this series switches can't reset automatically and keeps the changed state all the time. As long as the reset button is pressed. the SKPS (M) series manual reset switches will be original state.
Technical parameter:
| Pressure switch over value | 0.15Mpa - 3.45 Mpa , can customized |
| Adaptable ambient temp | -35℃ - 120 ℃ |
| Electric rated value | 120/240Vac,375VA; 28Vac,2A 120 Vac etc, can customized |
| Endurance | 100000 times |
| Compression resistance | contact to contact 750Vrms, contact to crust 750Vrms |
We can customize this kind of pressure switches. If you have any special specification, feel free to contact.
