China CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing for sale

CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing

Price Negotiable

Price: negotiate

MOQ: 20 pcs

Delivery Time: 4-6 weeks

Brand: Original

Product Description

Motorised Valve For Refrigeration / Air Conditioning System, Condensing Unit, Refrigeration Unit

Features

● Body material: forged brass
● Stem material: stainless steel06Cr19Ni10
● Sealing material: nitrile rubber (NBR)
● Working medium: cold/hot water
● Fluid temperature: 2-94℃
● Pressure: 1.6MPa
● Ambient temperature: 0-65 ℃ maximum relative humidity is no dew
● Travel time: 11~15 seconds
● Motor torque: >800gf.cm

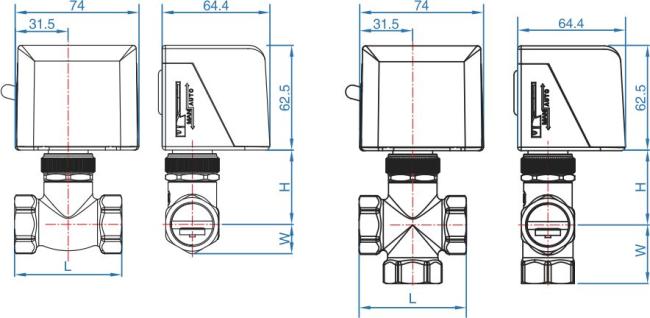

Specifications

Order No.	Model No.	Valve Type	DN	Thread Size	Kvs	Maximum differential pressure kPa	Dimensions
Order No.	Model No.	Valve Type	DN	Thread Size	Kvs	Maximum differential pressure kPa	L	W	H
12060	DDF-G-215*DFQ-JA1-220	2-way	15	G1/2	1.5	250	52	14	44.5
12061	DDF-G-220*DFQ-JA1-220	2-way	20	G3/4	2.1	250	64	17.5	44.5
12063	DDF-G-225*DFQ-JA1-220	2-way	25	G1	3.3	100	71	20	44.5
12064	DDF-G-315*DFQ-JA1-220	3-way	15	G1/2	1	250	55	30	40
12065	DDF-G-320*DFQ-JA1-220	3-way	20	G3/4	2.3	250	64	35	45
12066	DDF-G-325*DFQ-JA1-220	3-way	25	G1	3.6	100	66	35	45
Note: The table is recommended model, you can refer to the following selection description of the combination of models, please consult the sales staff for details.

Model Selection Description

Serial number	Code definition	Optional range definition
①	Motorized valve body series	DDF
②	Valve body code	G=internal thread, high pressure motorized valve
③	Valve type	2=2-way valve,3=3-way valve
④	DN	15=DN15,20=DN20,25=DN25
⑤	Motorized valve actuator series	DFQ
⑥	Actuator code	JA1=2-wire,JA2=5-wire,JA3=2-wire aluminum alloy shell
⑦	Input power	220=220VAC,110=110VAC,24AC=24VAC
