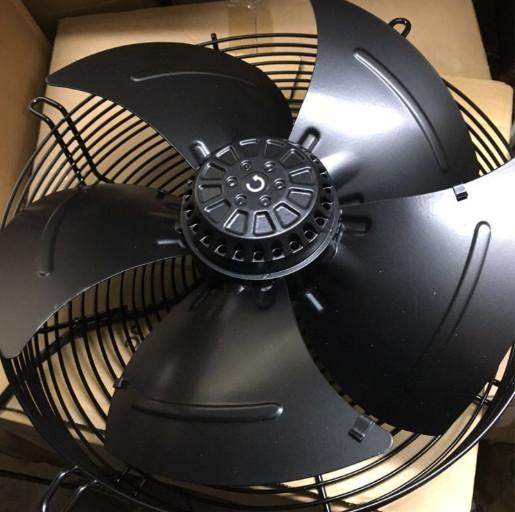

250mm,300mm,350mm,400mm,450mm,500mm,550mm,600mm,630mm Aixal Fan Motors For Radiator,Evaporator,Condensing Unit,1 Phase

General Information

These axial fan motors are  with single phase,  220-240V, 50hz. They are widely used in the radiator, evaporator, condensing units and other cooling equipments.

Features

1. The output power is from 5W to 34W, which is relative to the stack length.

2. The insulation class of motors is B, and the protection class of that is IP42. On request IP44 is available.

3. The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃+5℃ for outpower above 10W.

4. The applicable ambient temperature is from -30℃ to +50℃.

5. Because our standard motors adopt sleeve bearing, we suggest installing these motors horizontally. On request motors can be furnished with ball bearings.

6. The average service life of motors is over 30000 hours.

7. These shaded pole motors passed CE,UL and CCC approval.

Specifications

Should you have any question, feel free to contact.
