Financial Kiosk SS304 IP65 ATM Number Pad 3DES Cash Machine
304 Stainless Steel IP65 Metal PIN Pad Encryption ATM Pin Pad 3DES Payment Terminal Financial Kiosk Pin Pad
1. Input keypad: 10 numeric keys, 6 function keys
2. Secure PIN entry and secure mechanism, prevent any combination of the attack, ensure the safe of secure information
3. Secure encryption key management
4. High performance secure management
1. Faceplate dimensions: 87.5 x 91.5 mm
2. Weight: 1.0 KG
Features

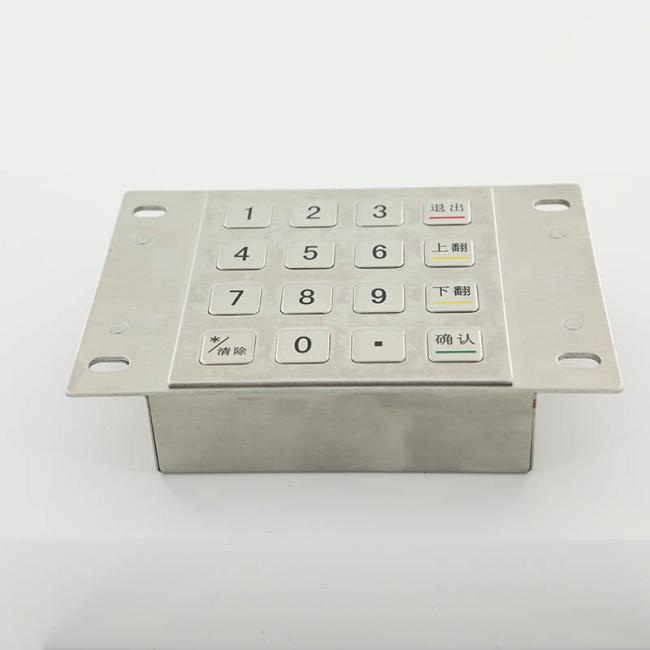

Ø 3DES Encrypted PIN Pad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø 16 keys: 10 numeric keys and 6 function keys
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Braille key design for visually handicapped people

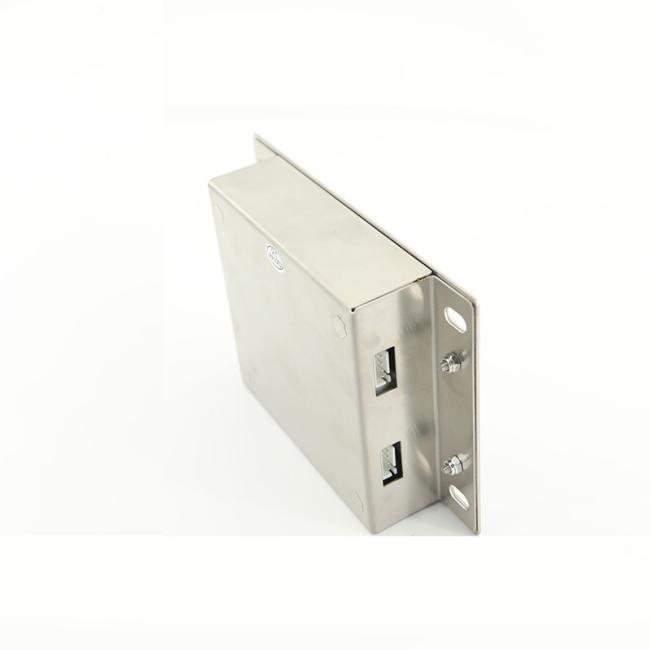

Ø Ports for optional 8 external function keys, beeper and guide light
Ø Tamper Detection and Protection
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)
Ø IK Protection Class DIN EN 50102:IK07
Supported Algorithms
Ø DES user data ECB/CBC encryption/decryption
Ø 3DES user data ECB/CBC encryption/decryption
Ø DES MAC calculation
Ø 3DES MAC calculation
Ø DES PIN encryption
Ø 3DES PIN encryption
Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO
| Mechanical Performance | |
| Panel Features | Imported stamping stainless steel material, oil-free, does not absorb sweat |
| Keys | Stainless steel material |
| Key lifespan | >3 Million times long life use |
| Key Pressure | 2~3N strong bearing |
| Key Travel | 0.45mm |
| Key Fonts | etched and durable ink, solid |
| Activation Dynamics | 50g |
| Protection Capacity | Sensitive data securely be kept over 5 years when power-off |
| Electrical Performance | |
| Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
| Power Supply | DC5V+10% |
| Power consumption | <0.5W (dynamic), <0.2W(static) |
| Reliability | MTBF: >30,000H; MTTR: <30 min |
