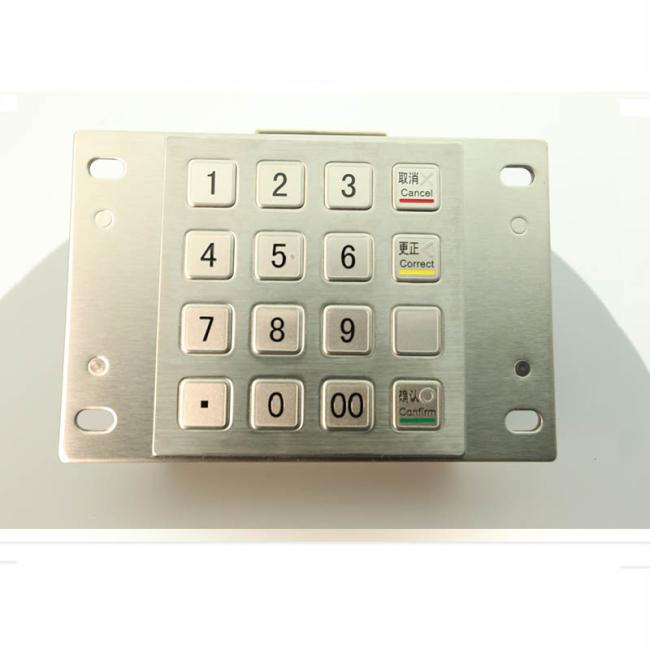

IP65 Rugged EPP Payment Kiosk Pin Pad 304 Stainless Steel Metal Encrypted
Payment Kiosk EPP Pin Pad IP65 Rugged 304 Stainless Steel Encrypted Metal Keypad
EPP Metal Keypad Description
Model No.: KMY3501B-GM
Faceplate dimensions: 87.5 x 91.5 mm
Interface: RS232 or USB
EPP Metal Pin Pad Features
Ø 3DES Encrypted PIN Pad made of high quality stainless steel
Ø Customizable layout, dimension and installation design
Ø 16 keys: 10 numeric keys and 6 function keys
Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
Ø Braille key design for visually handicapped people
Ø Ports for optional 8 external function keys, beeper and guide light
Ø Tamper Detection and Protection
Ø IP Protection Class IEC/DIN/EN/ 60529:IP65 (front panel)
Ø IK Protection Class DIN EN 50102:IK07
Supported Algorithms
Ø DES user data ECB/CBC encryption/decryption
Ø 3DES user data ECB/CBC encryption/decryption
Ø DES MAC calculation
Ø 3DES MAC calculation
Ø DES PIN encryption
Ø 3DES PIN encryption
Ø Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO
Specification of Encrypted Pin Pad
|
Mechanical Performance |
|
|
Panel Features |
Imported stamping stainless steel material, oil-free, does not absorb sweat |
|
Keys |
Stainless steel material |
|
Key lifespan |
>3 Million times long life use |
|
Key Pressure |
2~3N strong bearing |
|
Key Travel |
0.45mm |
|
Key Fonts |
etched and durable ink, solid |
|
Activation Dynamics |
50g |
|
Protection Capacity |
Sensitive data securely be kept over 5 years when power-off |
Environment Requirements
1. Operating temperature range: 25-65
2. Storage temperature range: 25-65
3. Maximum humidity in operating environment: 80%
4. For security reasons, the secure information will be deleted when the environment temperature is beyond the storage temperature range.
| Electrical Performance | |
| Interfaces Type | RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port |
| Power Supply | DC5V+10% |
| Power consumption | <0.5W (dynamic), <0.2W(static) |
| Reliability | MTBF: >30,000H; MTTR: <30 min |
