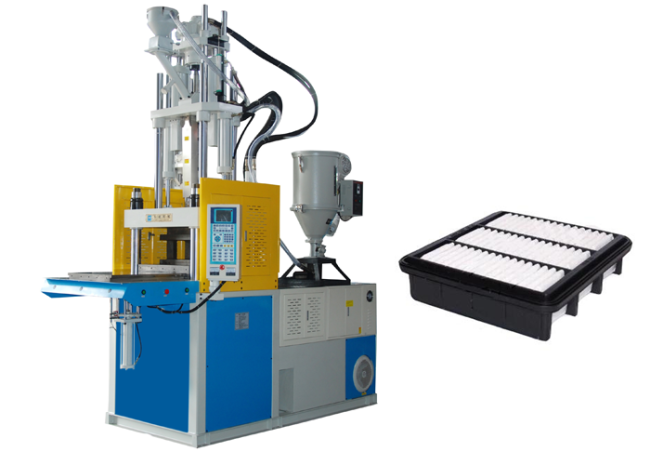

PLKS-1500 Air Filter Manufacturing Equipment 150T Blue Injection Machine
Full-Auto 150T Blue Injection Machine PLKS-1500 Air Filter Making Machine
Application: Plastic penal air filter injection making machine
Futures and advantages:
1. Firstly high-speed closing then shift to low pressure slowly closing the mold, emergency open of molds when clamping is abnormal, protect the molds.
2. With multi-stage temperature control system, accurate adjustment of multi-stage injection pressure & injection speed, non-stage adjustment of back injection pressure, suitable for plasticizing
3. High L/D ratio, widely applied in industrial engineering plastic productions.
4. Customerized service for auxiliary equipment controlled through a computer to achieve automatic production, is available.
5. Double-cylinder injection system, punch powerfully and smoothly.
6. Faults shown on-screen automatically, easy trouble clearing, and simple maintenance.
| MODEL | UNIT | PLKS-1500 | |||
| Injection Unit | Screw Diameter | mm | 50 | 55 | 60 |
| Maximum Injection Pressure | kg/cm2 | 1918 | 1554 | 1284 | |
| Theoretical Shot Volume | cm3 | 432 | 522 | 622 | |
| Maximum Shot Weight(PS) | g/oz | 393 | 475 | 566 | |
| Injection Rate | cm3/sec | 302 | 365 | 435 | |
| Screw Speed | r/min | 0-185 | |||
| Injection Rate | mm | 220 | |||
| Nozzle Retraction Stroke | mm | 315 | |||
| Number of Tenperature Control | / | 4 | |||
| Clamping Unit | Clamping Force | ton | 1470(150) | ||
| Space Between Tie-Bere | mm | 650*620 | |||
| Minimum Mold Thickness | mm | 260(360) | |||
| Opening Stroke | mm | 300 | |||
| Open Daylight | mm | 560(660) | |||
| Max.Mold Weight | kg | / | |||
| Ejetor Force | ton | 39.2(4) | |||
| Ejetor Stoke | mm | 110 | |||
| Electric Unit | Max.Hydaulic presssure | kg/cm2 | 13.7(140) | ||
| Pump Output | l/min | 116 | |||
| Oil Tank Capatity | l | 425 | |||
| Electric Power | kw | 18.5 | |||
| Berrel Heation Power | kw | 12.5 | |||
| Total wattage | kw | 31 | |||
| Others | Machine dimension(Approx.) | m | 3.1*1.3*3.5 | ||
| Machine Weight(Approx.) | kg | 2500 | |||
| Shipping Measurements(LxWxH) | m | ||||
| Shipping Weight | kg | 7500 | |||
