Electromagnet For The Leonardo Machine Clutch

Original Code 2558290 9340339  2548228 2589012

Rapier Tape ,Rapier Weaving Machine,Textile Accessories & Parts.

Overview and Function

The electromagnet for the Leonardo machine clutch is a critical component in the picking/finding clutch system of Vamatex Leonardo rapier looms. This electromagnetic clutch operates based on the principle of electromagnetism, where electrical energy is converted into magnetic force to achieve mechanical movement for engaging and disengaging power transmission .

When energized, the electromagnetic coil generates a magnetic field that attracts the armature plate, engaging the clutch to transmit torque from the driving shaft to the driven shaft. This provides clean, efficient, and fast-response operation with engagement times typically in the range of 30-100 milliseconds .

Technical Considerations

When selecting or replacing the electromagnet:

• Voltage Rating: Ensure compatibility with your machine's control system (typically 24V DC)
• Response Time: The clutch engagement time is critical for proper loom operation and synchronization
• Heat Dissipation: Electromagnetic clutches generate heat during operation; ensure proper ventilation and avoid exceeding temperature ratings
• Air Gap: The magnetic force and engagement time depend on the air gap between the armature and friction surfaces



WHY CHOOSE OUR PRODCUTS?

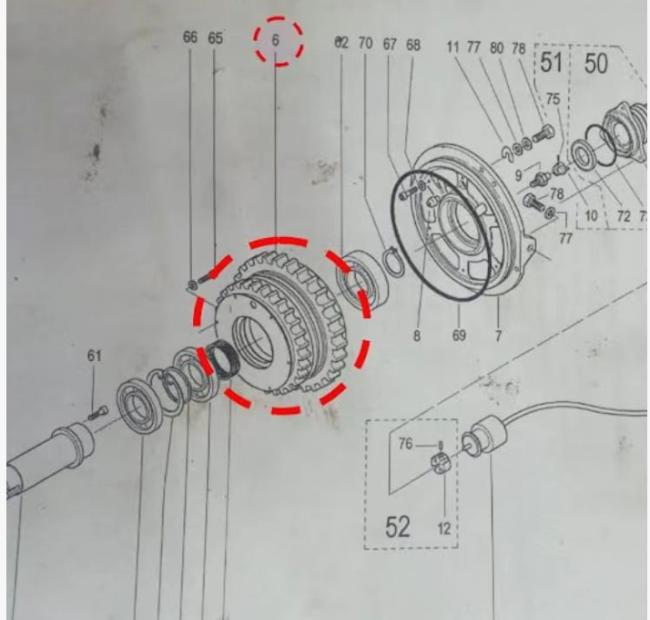

The electromagnet is part of a complete clutch assembly (part 0446001)

, so if you're experiencing issues, you may need to inspect the entire clutch system including the armature plate, friction discs, and associated mechanical components.
