Production Description:
1. General
This product specification describes the technique requirements, test procedures and precaution notes of LiFePO4 battery pack AMT-51.2V-200Ah, manufactured by Shenzhen AMT Technology Co., Ltd.
2. Battery’s Characteristics:
- Sturdy and pressure resistant steel envelope
- Short time to take full charge
- High capacity and high energy density
- Excellent cycle life
- Excellent high and low temperature performance
- Steady output voltage
- Low self-discharge
- Double safety protection
- With outstanding high level of vibrations and shocks
- Having iron and plastic shells for choice
- Environmentally-friendly
3. Key Parameter for cell and battery pack
| Item | Parameter | Remark | |
| Cell | Type | LiFePO4 Battery Cell | |
| Cell Model | LF48174133-100Ah | RP | |
| Nominal Capacity | 100Ah | Discharge : 0.2C | |
| Cut-off Voltage:2.5V | |||
| Minimum Capacity | 98Ah | Discharge : 0.2C | |
| Cut-off Voltage: 2.5V | |||
| Nominal voltage | 3.2V | ||
| Internal Impedance | ≤1mΩ | ||
| Dimension | Max.L173.9±0.5XW132.2±0.5H48±0.5mm | ||
| Weight | Approx.2.2kg | ||
| Batterypack | Pack Method | 16S2P | |
| Nominal Capacity | 200Ah | Discharge : 0.2C | |
| Cut-off Voltage:60V | |||
| Minimum Capacity | 190Ah | Discharge : 0.2C | |
| Cut-off Voltage: 60V | |||
| Nominal Voltage | 51.2V | working voltage range:40V~57.6V | |
| Energy | 10kWh | ||
| Charge Voltage | 57.6V | ||
| Discharge cut-off voltage | 40V | ||
| Charge Method | CC/CV | ||
| Standard Charge Current | 40A | ||
| Max. Charge Current | 100A | ||
| Standard Discharge Current | 40A | ||
| Max. Continues Discharge current | 100A | (Max plus 390Ah for 30s) | |
| Cycle Life | 3000 times | 80% | |
| Internal Impedance | ≤50mΩ | ||
| Dimension | L693.5xW620xH190mm (±5mm) /Customized |
Black/ white or others Output Connector(SC120 red ) |
|
| Weight | Approx.100kg | ||
| Working Temperature Range | Charge: 0°C--45°C | ||
| Discharge: -20°C--60°C | |||
| Storage Temperature | -10°C--50°C |
|
|
4. Related Certificates
5. Electrical Performance
| Item | Test Condition | Specification |
| Open-Circuit Voltage | The open-circuit voltage shall be measured within 24hours after standard charge | ≥52.8V |
| Battery Capacity | The discharge time at 40A shall be measured after standard charge at 20±5℃ and rest 30mins | ≥100% |
| Cycle Life | The discharge time on standard discharge shall be measured after 2000 cycles of standard charge and discharge at 20±5℃ | ≥80% |
| Charge(capacity) retention | The discharge time at 40A shall be measured after standard charge and then storage at 20±5℃ for 28days | ≥80% |
| Temperature Characteristics | After standard charging at 20±5℃, laying the battery at 55℃ for 2hour, then discharge at 40A to 10V, record the discharge time | ≥80% |
| Temperature Characteristics | After standard charging at 20±5℃, laying the battery at -10℃ for 4hour, then discharge at 40A to 10V, record the discharge time | ≥60% |
6. Machanical Performance
| Item | Test Condition | Specification |
| Crush Test | A battery is to be crushed between two flat surfaces. The force for the crushing is to be applied by a hydraulic ram with a 32mm diameter piston. The crushing is to be continued until a pressure reading of 17.2mmPa is reached on the hydraulic ram, applied force of 13kN. Once the maximum pressure has been obtained it is to be released. | No fire,No explosion |
| Drop Test | The battery has only two axes of symmetry in which case only two directions shall be tested. The battery is to be dropped from a height of 1 meter twice onto concrete ground. | No explosion, No fire, No smoke |
| Vibration | A full-charged battery is to be subjected to simple harmonic motion with an amplitude of 1.6mm total maximum excursion. The frequency is to be varied at the rate of 1 hertz per minute between 10 and 55 hertz. The cell shall be vibrated for 30 minutes per axis o XYZ axes. | No leakage, No Fire, No explosion |
7. Safety Performance for Cell
| Item | Test Condition | Specification |
| Over charge | At 20±5℃, charging battery with constant current 1C to voltage 4V, then with constant voltage 4V till current decline to 0. | No explosion, No fire |
| Over discharge | At 20±5℃, according to the requirement of the standard of discharge after discharge to termination voltage, 30 m Ω external load discharge within 24 hours. | No explosion, No fire |
| Short-circuit | At 20±5℃, Standard charge, across the electrodes of the battery with a less than 50 m Ω wire connection, 6 hours | No explosion, No fire The temperature of the surface of the cell are lower than 150℃ |
| Heating | Battery is heated in a circulating air oven at a rate of 5±2℃ per mins to 130℃, an then placed 30 mins at 130℃ | No explosion, no fire |

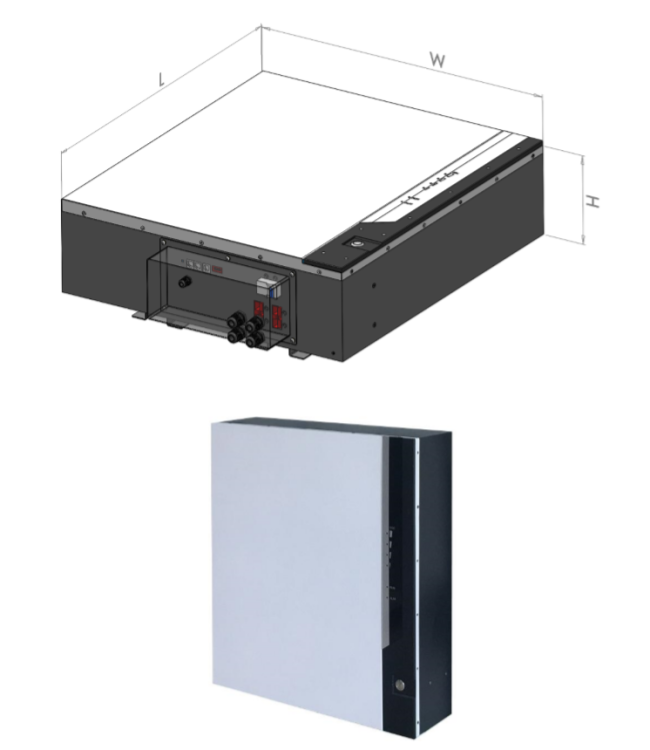

8. The drawing for battery pack
9. Fittings:

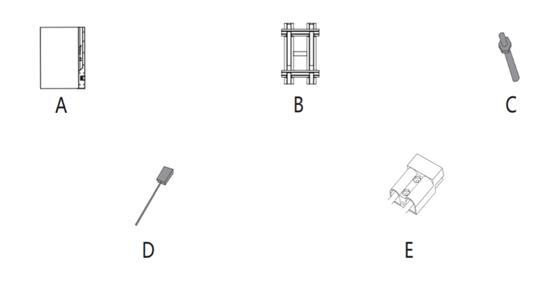

The following schematic diagram and bill of materials:
| Item | Quantity | Specification | |
| A | Battery | 1 | 10Kwh |
| B | Mounting frame | 1 | SPCC |
| C | Mounting frame screw | 8 | M8*70 |
| D | Communication cable | 1 | Length:3.0m cat 5 |
| E | Power connecter | 1 | 120A/600V |

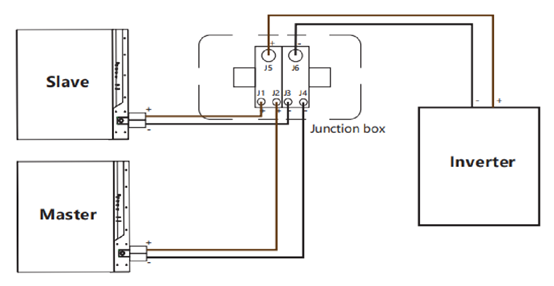

Let's take 2 batteries for example,use an additional junction box(not included in the standard pack) to combine the power flow of both batteries:
- First refer to chart below to define master level and slave level battery

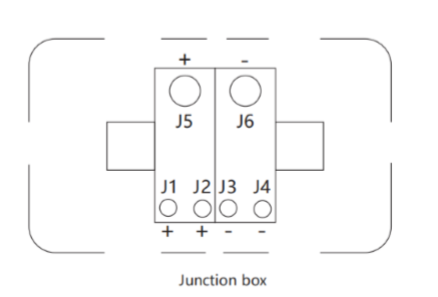

- J3 Connect master battery's positive pole to J1 and negative pole to J3 of the junction box.
- Connect slave battery's positive pole to J2 and negative pole to J4.
- Connect J5 with inverter's positive pole.
- Connect J6 with inverter's negative pole.
- Add suitable isolators when necessary.
