2S 1500mAh 7.4V Polymer Li Ion Battery 903462 Wireless RC Helicopter Lipo Battery
Price:
Negotiate
MOQ:
100pcs
Delivery Time:
2~3weeks for samples,4~5 weeks for mass production
Brand:
ODM/OEM
Product Description
7.4V 2S 1500mAh 7.4v Li-polymer battery 903462 for Wireless/ RC Helicopter / GPS
Production Description:
1. Basic Parameters
| AMT RC helicopter battery 2S 1500mah 7.4v Li-polymer battery 903462 | |
| Cell | 3.7V 903462 1500mAh battery cell |
| Battery Chemicals | Lithium Ion polymer |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 1500mAh |
| Charge Method | CC-CV |
| Standard Charging Current | 1C |
| Continuous Discharging Current | 1C(Peak 90C) |
| Fully charged Voltage | 4.2v |
| Discharging Cut-off voltage | 2.75V |
| Dimensions (L*W*H) | 17*34*69mm |
| Inner resistance | ≤0.7mΩ |
| Weight | 80g |
| Charging Temperature (Charging) | 0°C ~45°C |
| Working Temperature (Discharging) | -20°C ~60°C |
| Cycle life (100% DOD) | > 500 times |
2. Advantages
3. Safety Characteristics
| Items | Criteria | Test Method |
| Over-charge | No fire. No explosion. | Charging to 6V with Maximum Charging Current after Standard Discharge, then CV Charge till current decline to End-of-Charge Current or CV time is more than 7hours. |
| Short-Circuit | The maximum Temperature: ≤150℃. No fire. No explosion. | Rest for 30miniutes at (55±2)℃ after Standard Charge, then short-circuit battery by connecting the positive and negative terminals with a circuit load having a resistance load(copper wire) of 80±20mΩ.Test can be terminated when battery surface temperature has returned to ±10°C of environment temperature. |
| Thermal Abuse | No fire. No explosion. |
The battery is to be heated in a gravity convection or circulating air oven after Standard Charge. The temperature of the oven is to be raised at a rate of 5±2℃per minute to a temperature of 130 ±2°C and remain for 10 minutes. |

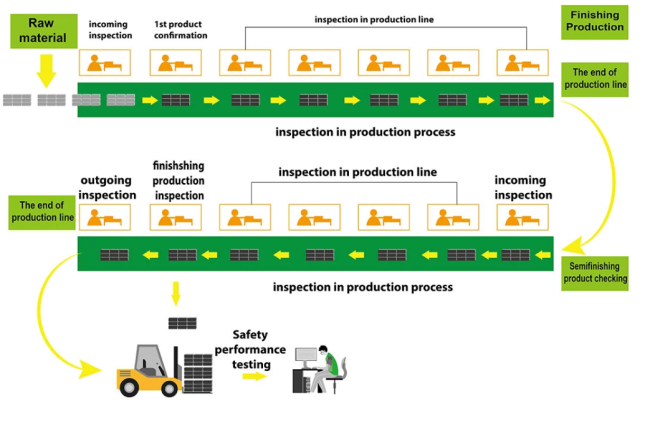

4. Quality Control
5. Applications
6. OEM/ODM Service
7. Package and Shipping
