Gray 12.8V 2560Wh 12V 200AH Lifepo4 Battery M8 Terminal For Solar Power System
Price:
Negotiate
MOQ:
1 pcs
Delivery Time:
4-5weeks for samples; 6~7weeks for mass production.
Brand:
ODM/OEM
Product Description
High Energy LiFePO4 Li-ion 12V 200Ah Battery for Solar Power System
LiFePO4 Li-ion Battery cells with high energy density,the single cell's capacity is 200Ah,Nominal voltage 3.2V,and the operational voltage is 2.8-3.65V.It is ideal for Solar energy storage system, UPS, EV, Electric Boat, Electric truck/ forklift, Golf cart, AGV and so on. It is also the best choice for replacing lead-acid batteries.
1. Battery Parameter:
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah | |
| Energy | 2560Wh | |
| Internal Resistance | ≤10mΩ | |
| Cycle Life | >2000 cycles@1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.5C | |
| Efficiency of Discharge | 96-99% @1C | |
| Standard Charge | Charge Cut-off Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) | |
| Recommend Charge Current | 20A | |
| Max. Charge Current | 100A | |
| Standard Discharge | Max. Continuous Discharge Current | 100A |
| Max. Pulse Current | 200A(10S) | |
| Discharge Cut-off Voltage | 10V | |
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Mechanical | Cell&Method | 4S |
| Package | ABS case | |
| Dimensions(in./mm.) | 525*240*220mm | |
| Weight(lbs./kg.) | 25kg | |
| Terminal | M8 | |
| Display screen | Optional | |
| Bluetooth | Optional |
2. Our Advantages:
- Professional Technical Team:AMT's R&D technical team has revcieved more than 30 invention and application patente.
- Perfect After Sales-service:AMT has a professional QC team which applied strict quality control on production and provide perfect after-sale service to customers.
- Battery Pack Technique:AMT possesses special pack technique to better protect the battery and increase the life span of the battery pack.
- Safety Certification Gurantee:Most products have been certified according to international standard including CE/MSDS/UN38,3/ROHS etc.
- Puntual Delivery:AMT has strict production plan to promise on time delivery.
3. Application:
4. Package and Shiping

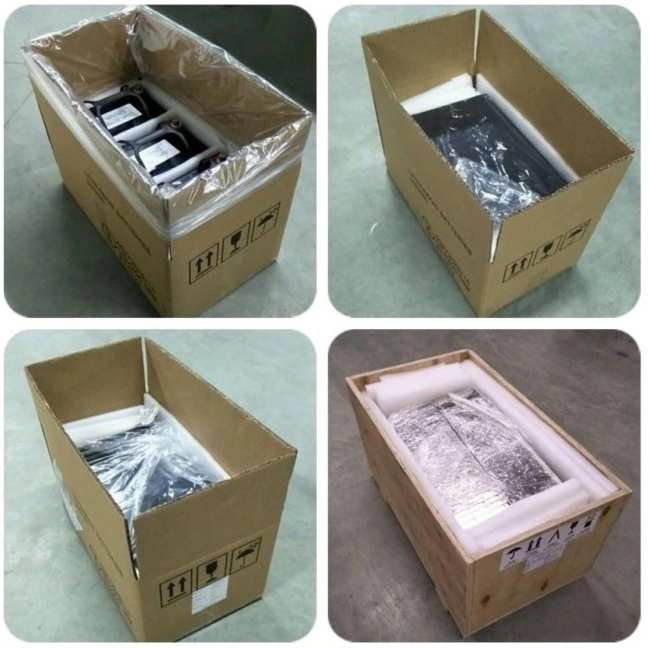

- Package:With high quality pearl wool, UN cartons / Plywood, plastic pallet.Standard batteries lead time.
- Shipping: By air, by sea, by express, railway transportation and so on.
