1000W Residential DC AC Hybrid Solar Energy System With Inverter PWM MPPT
Price:
Negotiate
MOQ:
1 pcs
Delivery Time:
4-5weeks for samples; 6~7weeks for mass production.
Brand:
ODM/OEM
Product Description
1000W Residential DC / AC Hybrid Solar Energy System with hybrid Solar Inverter
Solar Power Station is the conversion of energy from sunlight in to electricity, either directly using PV, indirectly using concentrated solar power, or a combination. Solar Power Station is made up of multiple panels, inverter, controller and back up batteries. Accessories includes junction box, PV rack, battery bracket, etc.
1. Product Specification:
|
MODEL
|
1000W
|
2000W
|
3000W
|
|
Input Voltage
|
12V/24V/48V
|
||
|
Nominal Frequency
|
50 / 60HZ (Can be adjusted in LCD menu)
|
||
|
Line Transfer Time
|
≤10ms Typical
|
||
|
Solar Panel
|
160W/18V*3PCS
|
265W/30V*4PCS
|
|
|
Solar Battery
|
200AH * 1PCS
|
200AH * 2PCS
|
|
|
Digital Controller
|
50A*1PCS
|
50A*1PC
|
|
|
Power Inverter
|
1000W* 1PC
|
2000W* 1PC
|
|
|
PV Cable
|
YES FOR FREE
|
YES FOR FREE
|
|
2. Product Details:
-
SOLAR PANEL SPEC.:Peak Power Watts: 160W (P160-18),Maximum Power Voltage: 18.4V,Maximum Power Current: 8.69A,Open Circuit Voltage: 22.08V,Short Circuit Current: 8.98A,Dimensions:1640×990×35 mm.Weight:11 kg
-
POWER INVERTER SPEC.:AC/DC priority adjustable on the LCD screen;Frequency 50HZ/ 60HZ adjustable on the LCD menu;By pass function;Battery reserve polarity protection;Charging current adjustable;Over-load, short -circuit, over temperature protectionOver charge, over discharge protection.
-
MULTI PAGE FUNCTION SPEC.:USB 5V 2A Output Terminal;DC 12V 3A Output Terminal;DC Switch & AC Switch Control;Multifunctional LCD&LED Display;Adjustable Charge Current;High-efficiency Performance.
-
SOLAR BATTERY SPEC.:Copper Terminals;Assured Capacity;Anti-corrosion& Anti-sulfide;Excellent Performance;Maintenance-free.
-
DC ACCESSORIES SPEC.:Cross Section: 4mm2, 6mm2 16mm2 25mm2 35mm2;Rated;Voltage:600VDC(UL)/1000VDC(TUV);Rated Current: 55A - 125A;Colors: Black For STD, Red Optional.;Lifetime:≤25 Years.

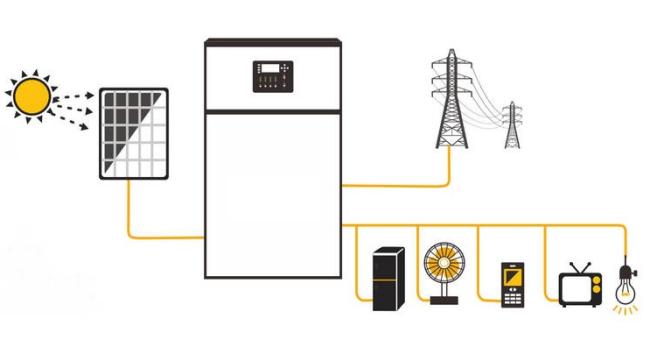

3. The Principle of Operation:
4. Product Advantages:
|
Product Advantage
|
|
|
Over-Load Protection
|
Circuit Breaker and DSP Intelligence control
|
|
Short-Circuit Protection
|
Circuit Breaker and DSP Intelligence control
|
|
Special Function 1
|
Over temperature, Over charge, Over discharge (DSP control)
|
|
Special Function 2
|
Battery Reverse Polarity Protection
|
|
Special Function 3
|
Adjustable Solar / AC priority in the LCD Menu
|
|
Special Function 4
|
Adjustable Battery type in the LCD Menu
|
|
Special Function 5
|
Adjustable Output frequency in the LCD Menu(50 or 60HZ)
|
|
Special Function 6
|
Adjustable AC Charging current in the LCD Menu
|
|
Special Function 7
|
Battery temperature compensation optional
|
|
Special Function 8
|
Bypass Button
|
|
Special Function XX (Customized)
|
Look forward your suggestion and requirements .......
|
|
Special Function XXX (Customized)
|
Look forward your suggestion and requirements ....
|
5. Package and shipping
