ODM 72V 300Ah LiFePO4 Lithium Battery Pack High Discharge Current For E Ricksaw
12V 500Ah Off Grid Inverter LiFePO4 Battery Pack for EV /E-car / Energy Storage System
Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery 72V 300Ah , created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less
1. Product Specification:
|
MODEL
|
Type
|
LENGTH mm
|
WIDTH mm
|
HEIGHT mm
|
WEIGHT kg
|
|
CB72300
|
FeLiPo4
|
1358
|
258
|
322
|
220
|
|
Type
|
Voltage
|
Capacity
|
Energy
|
Circle
|
|
|
72V/300Ah
|
73.6V
|
300Ah
|
22080Wh
|
＞2000
|
|
|
Continuous Discharge Current
|
Continuous Charge Current
|
Operation Temp
|
|||
|
200A
|
100A
|
-20℃
|
55℃
|
||
|
Initial SOC
|
Shell Material
|
Charge Temperature Range
|
|||
|
Customsized
|
Metal
|
0℃ ~ 55℃
|
|||
|
Voltage Settings (at 77°F/25°C)
|
||||
|
System Voltage
|
Discharge Voltage Cutoff
|
Charge Voltage Cutoff
|
||
|
72V
|
57.5V
|
84V
|
||
|
Do not install batteries in a sealed or non-ventilated compartment. Constant under or overcharging will damage the battery and shorten its life as with any battery.
|
||||

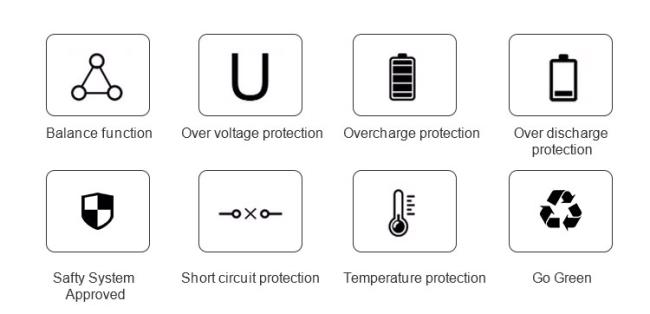

2. The Advantages of 72V 300Ah:
3. Related Products:
| Item | 48V50Ah | 48V100Ah | 60V40Ah | 60V100Ah | 72V30Ah | 72V100Ah | |
| Dimension (including terminals) | 350x305x220mm | 560x520x270mm | 400x180x290mm | 560x340x280mm | 480x180x290mm | 560x330x330mm | |
| Weight | Appx. 25Kg | Appx. 66.5Kg | Appx. 27Kg | Appx.70Kg | Appx. 24Kg | Appx.76Kg | |
| Min. capacity |
50Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
40Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
30Ah (0.2C)@25℃ |
100Ah (0.2C)@25℃ |
|
| Terminal | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable | |
| Voltage | Max. | 58.4 V | 56 V | 73 V | 73 V | 87.6 V | 87.6 V |
| Nominal | 51.2 V | 51.2 V | 64 V | 64 V | 76.8 V | 76.8 V | |
| Min. | 40 V | 40 V | 50 V | 50 V | 60 V | 60 V | |
| Max. Continuous Discharging Current | ≤50A | ≤150A | ≤40A | ≤50A | ≤30A | ≤100A | |
|
Communication |
CAN | ||||||
| Temp. Condition | Operation (Charge): 0 ~ 45℃ | ||||||
| Operation (Discharge) : -20 ~ 60℃ | |||||||
| Storage : -20 ~ 60℃ | |||||||
| Self-Discharge Rate | 100% SOC, 25℃, 1month: ≤3% | ||||||
| Cycle Life | 0.2C, 100% DOD 25℃: 3,000 cycles | ||||||
| Abuse test |
Overcharge, Over-discharge, Short, Heat,Nail, Crush GB/T 31485-2015 |
||||||
4. Product Application:

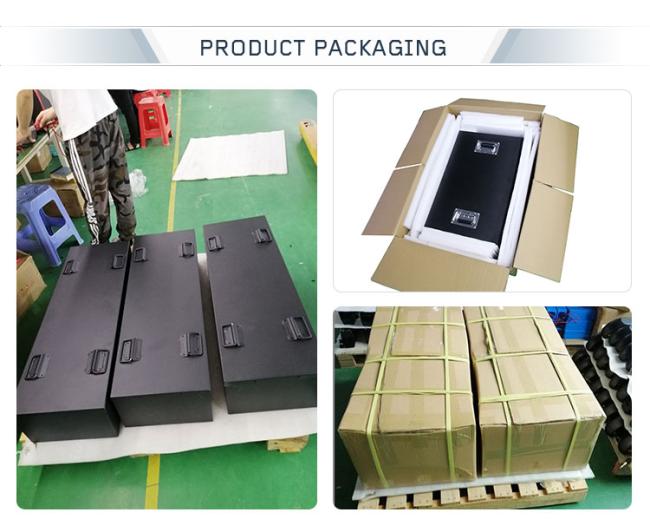

5. Package and Shiping
