Rechargeable Smart LiFePO4 Battery Cell 3.2V 8Ah 10Ah For UAV Drone
Rechargeable Smart Li-polymer LiFePO4 Battery Cell 3.2V 8Ah 10Ah for UAV Drone
1. Description:
AMT is a professional manufacturer engaging in research,development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.
LiFePo4 is the major material. We have more 30 types of cells, and could make OEM battery pack from 12V-200V which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
2. Production Basic Parameter:
|
Item
|
Condition/ Note
|
Specification
|
|
Nominal Voltage
|
Average
|
3.2V
|
|
Capacity
|
Std. charge/discharge
|
Nominal 8.0Ah (Cnom)
Minimum 8.0Ah (Cmin)
|
|
Standard Charge
|
Constant current
Constant voltage
End current(Cut off)
|
1C(8A)
3.65V
0.5C(4A)
|
|
Standard Discharge
|
Constant current
End voltage(Cut off)
|
1C(8A)
2.0V
|
|
Max. Charge Current
|
|
30C(240A)
|
|
Max. Discharge Current
|
≤30sec
|
30C(240A)
|
|
Operating Temperature
|
Charge
Discharge
|
0 ~ 45℃
-40 ~ 55℃
|
|
Storage Temperature
|
3 month
1 year
|
-10 ~ 45℃
0 ~ 30℃
|
|
Storage Humidity
|
|
25-85﹪RH
|
|
Weight
|
Approx.
|
0.43kg
|
|
Internal impedance
|
AC internal resistance in semi electric state
|
≤0.5mΩ
|
|
Dimension
|
Thickness
Width
Length
|
max. 6.3mm(50%SOC)
max. 166mm
max. 227mm
|
3. Application:

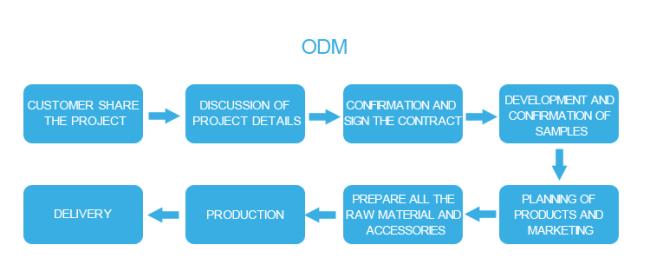

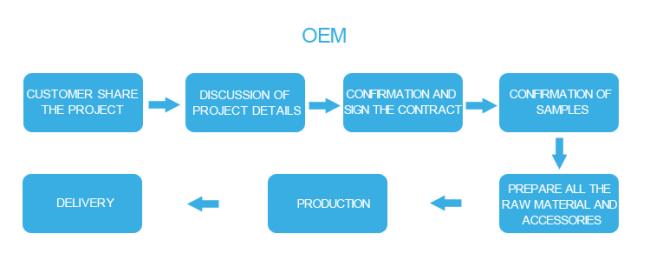

4. OEM and ODM service:
5. Package and Shipping:
6. FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
