316 Stainless Steel Close Type Hydraulic Quick Coupler 1/2'' CB-1 Series

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: 7-20 work days

Brand: carterberg

Product Description

Looking for a different model or more sizes of ISO 7241-B couplings? Browse our complete product lineup here: ISO 7241-B Series Overview »

1/2'' CB-1 Series stainless steel 316 close type hydraulic quick coupling

why fluid coupling is used in belt conveyor?

Features

Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
Critical parts are hardened for durability.
Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

Body Size(in)	1/8	1/4	3/8	1/2	3/4	1
Rated Pressure(PSI)	3500	3000	3000	3000	3000	2000
Rated Flow(GPM)	1	3	6	12	28	50
Temperature Range	-20℃ to +120℃
Stander seal material	VITON

CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

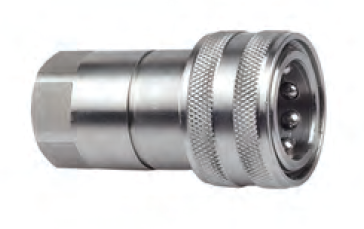

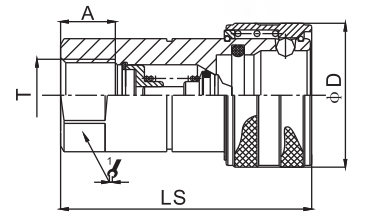

PARTNO.	LS	￠D	HEX1	A	T
CB-S1M-1F-SS	50	24	17	10	G1/8 NPT1/8
CB-S2M-1F-SS	58	28.5	19	13	G1/4 NPT1/4
CB-S3M-1F-SS	65	35	24	13	G3/8 NPT3/8
CB-S4M-1F-SS	73.4	42	30	17	G1/2 NPT1/2
CB-S6M-1F-SS	92	54	36	22	G3/4 NPT3/4
CB-S8M-1F-SS	103	65	41	23	G1 NPT1

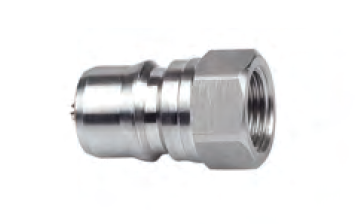

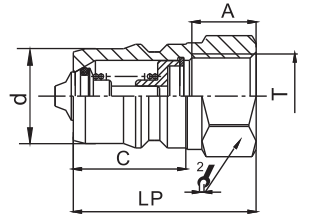

PARTNO.	LP	d	C	HEX2	A	T
CB-P1M-1F-SS	31	10.8	19	14	10	G1/8 NPT1/8
CB-P2M-1F-SS	36	14.2	22.8	19	13	G1/4 NPT1/4
CB-P3M-1F-SS	40	19	25	24	13	G3/8 NPT3/8
CB-P4M-1F-SS	46.5	23.5	28	27	17	G1/2 NPT1/2
CB-P6M-1F-SS	56	31.5	36	36	22	G3/4 NPT3/4
CB-P8M-1F-SS	63	37.8	35.5	41	23	G1 NPT1
